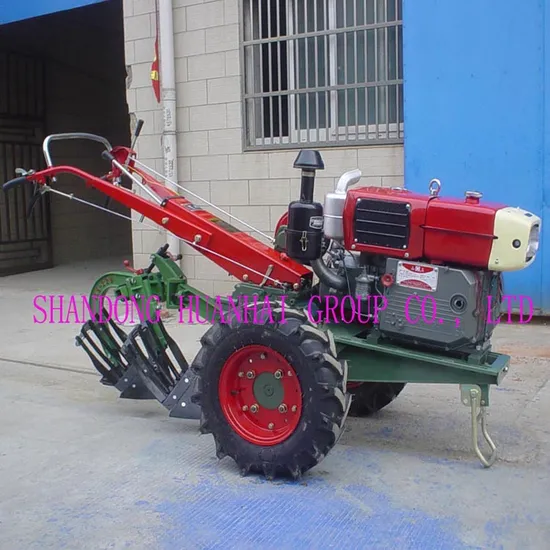

Sh101 Sh121 Sh151 Walking Tractor

Product Description

Powered by SH185N and SH190N diesel engines, it features reasonable structure, good performance, light and flexible, good reliability and long service life, etc., it's suitable for all kinds of field work in plain, hills and mountainous area, as well as transportation and fixing work.
With corresponding implements, the tractor can go on plowing, harrowing, ridging, seeding, fertilizing, harvesting and so on, and it can also transport equipped with a trailer of 1 ton, or as fixing power, can be used for threshing, grindling, milling and pumping.
Basic specification of chassis:
Dimensions (mm): 2170X845X1150
Minimum ground clearance (mm): 210
Wheel tread (mm): 680~740(infinitely variable control)
Driving wheel: 6.00-12 herringbone rubber tyre
Tyre pressure (kpa)
Field working: 80-120 (0.8~1.20kgf/cm2)
Transportation: 140~200 (1.40~2.00kgf/cm2)
Chassis weight (kg): 172
Operating weight (kg): 340
Gear speed and calculating traction force:
Gear I II III IV V VI RI RII
Speed(km/h) 1.75 2.72 4.40 7.09 11.03 17.82 1.35 5.45
Traction force(N) 1600 1600 1600 1600 1616 956
Specification of SH185N diesel engines:
Type: Single, horizontal, water cooling, 4-stroke
Cylinder bore x piston stroke (mm): 85 x 90
Displacement (CC): 510
Compression ratio: 21± 1
Rated output:
12-hour power: 5.188 / 8 (kw/HP)
1-hour power: 6.47 / 8.8 (kw/HP)
Rated speed(r. P. M): 2200
Cooling system: Condenser
Starting method: Hand crank
Operating weight (kg): 96
Specification of SH190N diesel engines:
Type: Single, horizontal, water cooling, 4-stroke
Cylinder bore x piston stroke (mm): 90 x 90
Displacement (CC): 537
Compression ratio: 21± 1
Rated output:
12-hour power: 7 / 9.5 (kw/HP)
1-hour power: 7.7 / 10.5 (kw/HP)
Rated speed(r. P. M): 2300
Cooling system: Condenser
Starting method: Hand crank
Operating weight (kg): 99

Specification of clutch: Single-disk, dry type, constant-meshed friction type
Specification of gearbox: (3+1) x2 combined type, cylinder gear driving
Specification of final drive: Single grade, spur cylinder gear transmission
Specification of brake: Ring shape and internal expansion type
Specification of steering system: Meshed sleeve type
Power take-off (r/min): 1176
