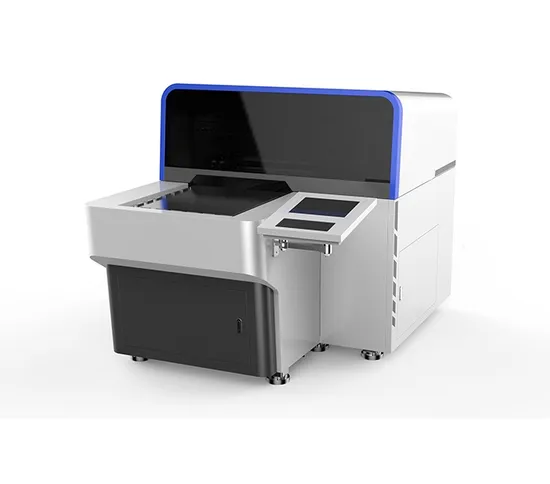

High Quality Best Products Legend Ink-Jet Printer

Product Description

Product Description
Brief Introduction
Import CAM data, relying on digital control technology, legends can be directly printed on the PCB through a high-precision print head. Legends will be immediate dried by UV-LED lamp, which is greatly simplified the printing process compare with traditional silk-screen,developing and exposure, so as to achieve a high-resolution, high-efficiency and low-cost printing.
Product Parameters
Parameters

Model	Robust PY8900R	Robust PY8900F
Product Type	Rigid Boards	Flexible Boards
Heads	Konica
Min. Line Width	3mil(75μm)
Min. Legend Size	500μm*400μm
Max. Resolution	1440dpi*1440dpi
Dot Size	13pl
Max. Printing Speed	500 mm/S
Output(Without loading&unloading)	12S-18S/Panel (Board size 20"*24")
Ink	Taiyo MW300/ZBX-2000
Curing System	LED
Alignment	Automatic CCD alignment, 3 or 4 points both available
CCD Depth	3mm
Printing Accuracy	±35μm
Board Thickness	0.1-8.0mm
Max. Printing Area	630mm*762mm
Printing Mode	A-A/A-B Fast mode/Standard mode /High Resolution A-A/A-B
Dimension	2230mm*1600mm*1640mm

Output (Without loading&unloading)

Fast Mode	Max. 6 second/side
Standard Mode	Max. 12 second/side
High Resolution Mode	Max. 18 second/side

Our Advantages Features
1. Digital printing
1) Less Process;
2) More finer legends, immediate drying while printing under LED curing system;
3) CCD automatic alignment, more accurate printing;
4) Serial number can be arranged automatically;
5) Controllable ink dot;
6) Environmental and recyclable ink system.
2. Movements control
1) Magnetic levitation system make slow noise,more stable movement and keep long-term accuracy;
2) Marble base, stable and precise;
3) Fast speed,rated 500mm/s;
4) Imported control components, accurate and efficient, with an error range of 1μm.
3. Multi-heads technology
1) Support up to 4 heads, One Pass lo 576mm width;
2) Reduce working intensity of the nozzles, reduce lighting time makes longer life span;
3) Masking technology greatly improves nozzle utilization;
4) The inevitable choice to replace traditional silk screen printing.
4. Ink control system
1) Negative pressure control, accurate to 0.01Kpa, stable liquid level
2) Ink recovery with multi-stage filtration and micro-jet control technology greatly reduces the risk of clogging
3) Effective and environmentally friendly cleaning method, almost no need manual cleaning
5. Printing software
1) One-key printing software is easy to learn and operate;
2) Accurate image matching algorithm, automatic alignment pass rate more higher;
3) Fast analysis of GBR files, complete analysis within 1s;
4) Advanced and mature correction algorithm: RP algorithm;
5) Customized cycle, various one-dimensional codes,QR codes.
6. Software of data preparation
1) Self-researched data preparation software;
2) Simple and easy data preparation steps, very fast file exporting.
