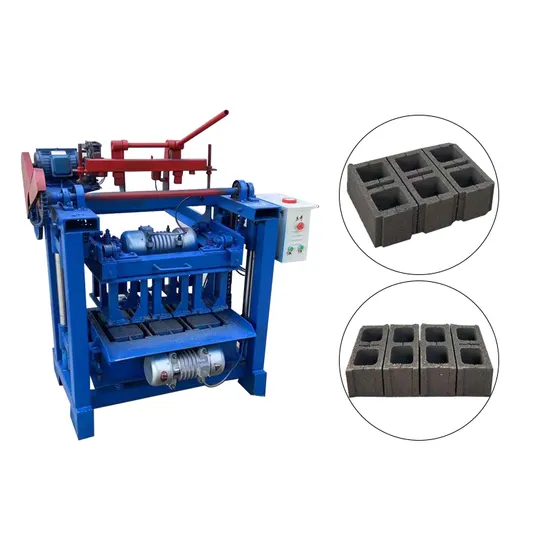

China Low Cost Compressed Brick Making Machine for Sale

Product Description

Product Description
Method of application
1. Check whether all parts of the machine are loose; lubricating oil should be added to the oil injection part to reduce mechanical friction and extend service life.
2. After turning on the power, press the mold lifting button and hang the indenter; overlap the mold box and the indenter several times to check whether it is smooth.
3. Press the mold lowering button, drop the mold box onto the wooden pallet, push the pressure head back, and start adding materials into the mold box, then turn on the vibration button and vibrate for 5-8 seconds, stop vibrating and add a little material. The material is scraped to the horizontal position of the mold box.
4. Pull back the pressure head and hit the stopper. The hook under the plate will drop the pressure head. At the same time, turn on the upper vibration and lower vibration switches. When the horizontal bars on the two halves of the screw reach the position, turn off the up and down vibration buttons. Start the rising button and hang the upper pressure head on the hook. Stop immediately when it reaches the position to avoid collision. Only after the hook is firmly hung can the bricks and pallets be pulled out with a forklift.
Purpose: This machine can use river sand, gravel, slag, slag, expanded perlite, fly ash, ceramsite, etc. as the main raw materials, add an appropriate amount of cement, and use different proportions to produce standard blocks and non-standard blocks. , paving blocks, load-bearing blocks, non-load-bearing blocks and lightweight blocks. The surface of the blocks is complete, dense and beautiful.
Working Principle
This machine is manufactured on the base of technical modification to the original block shaping machines,that is changing the former one -time-vibration into twice-vibration of moulding core.
so the block density becomes higher,shaping speed quicker and block strength more even, this model of machine can be suitable to the customers who have any kinds of existing cement working sites, and the consumption pallets can be reduced.

Model	Dimension(mm)	Motor	Power(kg)	Weight(kg)
Big Mobile QT4-35	1500*1500*1600	Vibration motor*2	2.2	700
QT4-35A	1200*1400*1500	Vibration motor*3 Lifting motor*1	4.8	700
QT4-35B	1300*1200*1500	Vibration motor *3 Lifting motor*1	5.7	750
QT4-40	1500*1300*1900	Vibration motor*4 Lifting motor*1	6.6	1100

Block Samples&Capacity
Main Parameters

Dimension	Power	Weight	Voltage
1650*1500*2200mm	7.4kw	900kg	220v/380v/415v

Block Capacity

Block size	Capacity/time	Cycle time	Capacity/8h
390*190*190mm	4pcs	40s	3000pcs
390*150*190mm	5pcs	40s	4000pcs
390*120*190mm	6pcs	40s	4500pcs
390*90*190mm	8pcs	40s	5760pcs

Final Product show Packaging & Shipping
Packaging Details
(1) simple packaging.Other in wooden boxes;
(2) Delivery the machine by 20-foot container/40-foot container;
(3) Delivery the machine within 7 days after receiving client
(4) Once the product is sold, if it is not a product quality problem, it cannot be returned or refunded
FAQ
1. How do I know which model is suitable for my bricks?
A: Please inform us your brick sample pictures or brick drawings , we will suggest you our suitable types for your reference.
2. What is your package for shipment?
A: Usually safety export package(steel box) for LCL,Nude package for full container. or as customer's requirements.
3. How long about the delivery time?
A: The delivery time shall be determined according to the type,Within 15-25 days after received deposit usually.
4. How long is your warranty terms?
A: Our Warranty terms is 1 years guarantee.
5. What is the useful life of your machine?
A: Usually 8-10 years
