China Good Quality Bauxite Rotary Kiln, Bauxite Calcination Kiln

Product Description

China good quality bauxite rotary kiln ,bauxite calcination kiln
Rotary kiln Usage and applicatioin :
Bauxite Rotary kiln is widely used for many industries like metallurgy, chemical industry, building refractory materials, environmental protection, etc. The Rotary Kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc. the kiln body has a certain tilt angle with level. The whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.
Rotary kiln Working principle:
The rotary kiln is composed of barrel, supporting device, catch wheel supporting device, transmission device, movable kiln head, kiln tail sealing device, and coal injection pipe device.The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. The material will be calcined in the shell after feeding at the head of the kiln. The fuel will be spurted from the kiln tail and start burning. The hot air from the end blow into the kiln directly impacting the raw materials. And then will be turned over along the direction of circle and mixing from the high-end to low-end along the axial because of the shell's slope and low speed rotation. The material will be calcined into the clinker after discomposition, calcination and cooling process. So they will discharge from the low-end.
Rotary Kiln Features:
1. Advanced structure, good sealing, the kiln head is sealed by the shell, and the kiln tail adopts the axial contact seal which ensures the sealing is reliable.
2. Easy to install and maintain; large kiln equipped with the auxiliary drive to meet the needs of installation and maintenance.
3. The rotary kiln with large unit volume, long furnace life, stable operation, high heat transfer efficiency, and low heat consumption.
4. The rotary kilns offer a robust and reliable design that delivers the benefits of low resource consumption and high operational reliability.
Rotary kiln technical specifications

:Specificatios Model (mm)	The size of the kiln			Yield (t/h)	Speed (r/min)	Electrical power (kw)	Weight (t)
	Diameter (mm)	Length (mm)	Gradient (%)
φ1.4×33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5
φ1.6×36	1.6	36	4	1.2-1.9	0.26-2.63	22	52
φ1.8×45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2
φ1.9×39	1.9	39	4	1.65-3	0.29-2.93	30	77.59
φ2.0×40	2	40	3	2.5-4	0.23-2.26	37	119.1
φ2.2×45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3
φ2.5×40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61
φ2.5×50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37
φ2.5×54	2.5	54	3.5	6.9-8.5	0.48-1.45	55	196.29
φ2.7×42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5
φ2.8×44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58
φ3.0×45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94
φ3.0×48	3	48	3.5	25.6-29.3	0.6-3.48	100	237
φ3.0×60	3	60	3.5	12.3-14.1	0.3-2	100	310
φ3.2×50	3.2	50	4	40.5-42	0.6-3	125	278

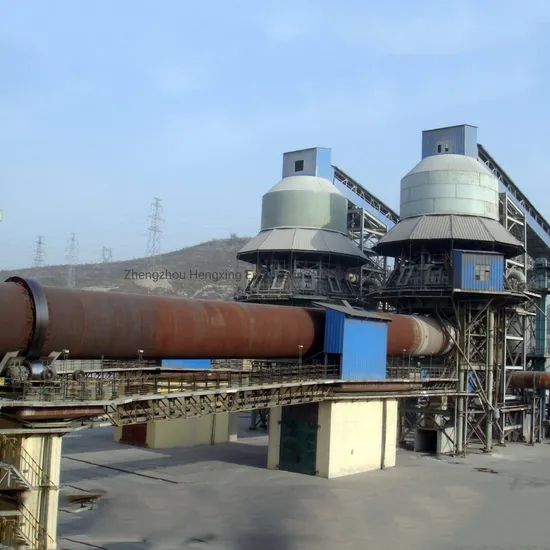

Rotary kiln customer site :
Rotary kiln manufacturing :
Rotary kiln delivery :
Our service : 1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1>. Select equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.

3. After-sale services:
Provide considerate services to minimize clients' worries.
1>. Assist clients to prepare for the first construction scheme;
2>. Install and debug the equipment;
3>. Train the first-line operators;
4>. Examine the equipment;
5>. Take initiative to eliminate the troubles rapidly;
6>. Provide perfect service;
7>. Provide technical exchanges.
