Rubber Material Synthetic for Doctor Blade Holder Paper Machine Air Loading Tube
| US$1.80-7.50 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZALT
Certification
RoHS, ISO 9001:2000, CE
Surface Treatment
Wax or No Wax
Manufacturing Process
Woven
Material
Composite Fiber and Rubber
Diameter
15,18,19,20,22,24,25,30,32mm
Function
Air Loading
Delivery Time
7 Days
OEM Service
Support
Transport Package
Standard Seaworthy Package
Specification
Customized
Trademark
LEIZHAN
Origin
China
HS Code
84399900
Production Capacity
5000PCS /Year
Product Description

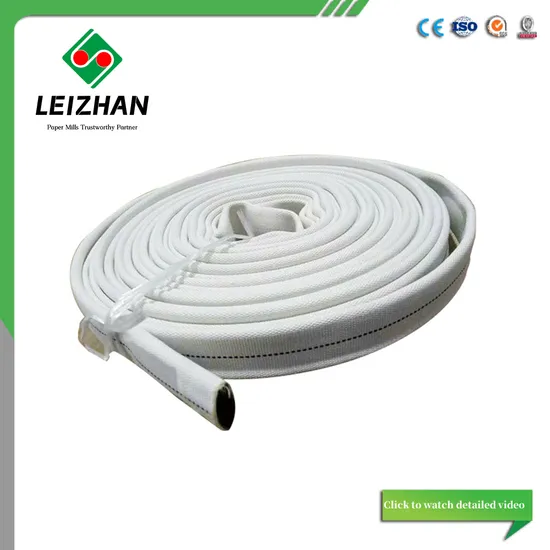

Product DescriptionPaper Machine Air Loading Tube
The rubber air tube is also called pneumatic tire, corrugated pneumatic tire, air cell, etc. Widely used in papermaking, machinery, chemical industry, construction, electronics, automobile, train, ship, and other industries, all the facilities and parts that need travel control and isolation, shock absorption. It can be deflected, flexed, and flexibly transmitted.We have a wide range of vacuum roller pneumatic tires/tubes with a diameter of 15mm-18mm-19mm-20mm-22mm-23mm-25mm-30mm-32mm. The wall thickness varies from 2 mm to 5 mm, and the special air nozzle for vacuum roller pneumatic tires has a variety of specifications.
Detailed Photos
Product Parameters
It is mainly used in air bag type doctor blade holder, conveying pressurized air, convenient to control the line pressure of scraper blade and roller surface, and buffer the vibration of scraper.
| Name | Inner Diameter | Outer Diameter | Packing | Features |
| Air tube for creping doctor blade | 38/45mm | 41/48mm | Standard packing 30000mm | Heat resistance and pressure resistance |
| Air tube for wire and press section | 25mm | 27mm | Standard packing 30000mm | Pressure resistance |
| Air tube for dryer section doctor blade | 25mm | 27mm | Standard packing 30000mm | Heat resistance and pressure resistance |
