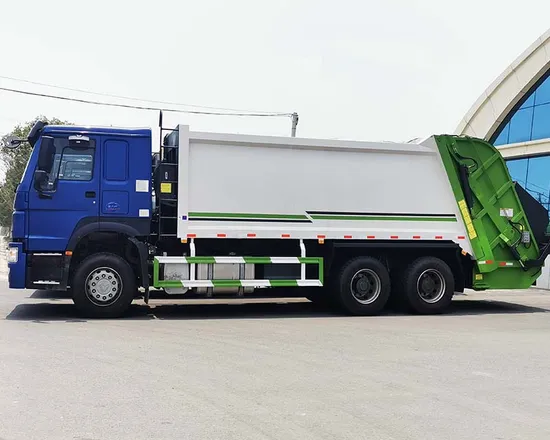

10/12/20cbm Sinotruk HOWO 6X4/4X2 Compactor Garbage Truck

Product Description

Product Description How Does a Trash garbage compactor truck Works?
When walk in the street we can see that there are many garbage compactors at work, so what is garbage compactors? How does it work? I believe you are not very clear about these two points, but it doesn't matter, today we are garbage compactor truck manufacturers to tell you what is garbage compactor truck and garbage compactor truck working principle!

What is a garbage compactor?

Garbage compactor truck is used for garbage collection and transport of sanitation vehicles. Garbage compactor truck is equipped with sealed inside body, filling machine, shovel, hydraulic transmission system and electrical control system.Garbage is dumped through the rear filler, after crushing, the compactor pressure into the truck, and loading capacity is larger than general garbage truck. The loading and unloading of garbage does not pollute the environment, but also reduces the labor intensity of cleaning workers. Rear-mounted compactor garbage truck adopts computer-controlled automatic operation device with high degree of automation.

The working principle of garbage compactor truck

1. When the filling hopper is filled with garbage, the scraper is opened and ready to insert loose garbage.
2. The skateboard drives the scraper to move down together and insert it into the garbage for crushing and compactor for the first time.
3. The scraper rotates forward to further compact the garbage.
4. After the scraper is in place, move up with the skateboard, compact the garbage and load it into the garbage bin, and return to the starting position. In the process of continuous garbage filling, the push shovel recovers gradually to overcome the back pressure under the action of extrusion pressure, so that the garbage is evenly filled with the whole garbage bin.
5. After the garbage truck is filled with garbage, the dustbin is completely closed and will not pollute the environment in transit.
6. When a garbage truck unloads garbage at a disposal site (or landfill), first lift the filling device, open the back end of the garbage can, the push spade that was parked in front of the trash can moved back, along the horizontal direction, push the rubbish out of the bin.
In fact, the garbage compactor truck is very similar to the garbage truck, but it has a few more functions than the garbage truck. The way it works can save a lot of work for the sanitation workers.
Detailed Photos
Product Parameters

Model	ZZ1257N4341W
Wheelbase	4325+1350mm
Driving type	6X4, Left hand driving
Made year	2021, Brand New, produced according to order
Cabin	HOWO-HW76, with single sleeper, with air conditioner
Engine	WD615.47, 371HP, Euro II emission standard, diesel
Gearbox	HW19710, manual, 10 front & 1 reverse, WITH PTO
Front axle	HF7 ,7Ton
Rear axle	ST16,16Ton
Suspension	leaf springs
Tires	295/80R22.5, 11 pcs (including one spare tire)
Steering	hydraulic operation with power assistance
Fuel tank	300L, Iron material
Compacting Volume	20CBM, With Hydraulic system, operating system, lifting system, oil tank, cabinet door pendulum, hanging barrels institutions etc.
Overall size	9990×2500×3650MM
Color	Optional

Our Advantages
1. Features advantage:Good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.2. Characteristic:
(1) Power drive flexible suspension damping;
(2) Dual-pump combined technology, flow expanding steering, guide control;
(3) The frame of the high strength adapts to the heavy load condition;
(4) Working mechanism lightens the unloading impact greatly;
(5) Hydraulic wet brake ensures the safe and reliable operation and travelling;
(6) The adjustable instrument panel contributes to the best operation position;
(7) Intelligent electronic monitoring system could monitor the operation condition of the machine accurately.
(8) Convenient maintenance
With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency.
The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.
3. Working on various Earth construction projects
Why choose RAYGOO GROUP 1. Quality assurance
2. Multi-currency payment ( RMB / USD / EUR) & Multi Payment team: T/T, L/C at sight....
3. Cheap shipment costs, Rich container package & Fast shipment:
Raygoo group cooperated with many shipping company many years, which can get the cheapest ocean freight with latest shipping date, even whole shipping tracking.
4. Long-term spare parts support:
Since 2015, in order to effectively solve our customers spare parts demand, we built a spare parts department, which get high speaking feedback from our clients.
5. Long-term technical service support:
We have a professional technical team which provide technical support for our domestic or oversea clients. If clients have some technical problems which can't deal with it by self, we can provide video support or door to door support.
6. Door and door service:
Till now, we can support door and door assembling service if they can't assemble it when container arrived in some countries,such as Philippines, Zimbabwe, Mozambique, Kenya, Cambodia, Indonesia.... If the quantity is large, even can provide engineer indoor support.
7. Rich brands:
As we worked on construction machines more than 15 years, which already build nice strategic relationship with world brand company for competitive price and quality.support
FAQ Q: What is your delivery time?
A: For standard machine, the delivery time is Within 25-35 days after receiving the down payment.It also depends on the models and the quantity of your order.
In peak season,the production may take longer.
Q: What is the payment term?
A: Normally we accept L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.
Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange,and Green. We can customize the color when you order more.
Q: What kind of service can I get from you? How can I get spare parts?
A: We have 1 year warranty for each brand new machine, within 1 year, if any parts broken because of quality issues, the new parts would be sent to you free of charge by DHL, within 7 working days. Besides of the warranty policy, our professional after-sales team responds quickly to any kind of using problems, replacement parts supply could be guaranteed for a life time.
