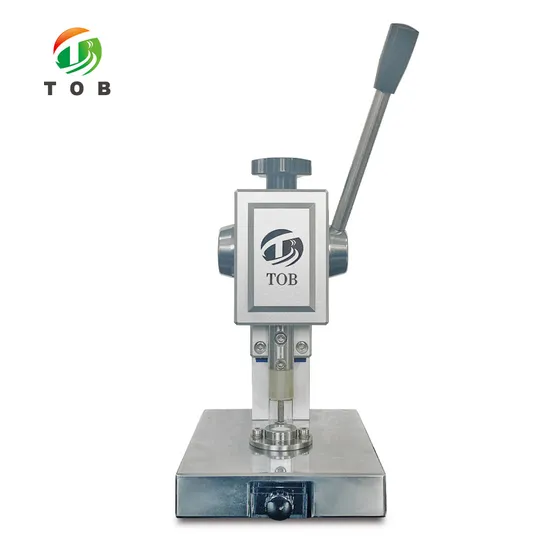

Manual Coin Cell Battery Electrode Disc Cutting Machine
| US$600.00-900.00 | 1 set (MOQ) |
Basic Info.
Model NO.
TOB-CP-60
Power Source
Electric
Certification
CE
Warranty
12 Months, 1 Year
Customized
Customized
Advantage
Simple Structure
Condition
New
After-Sales Service
1 Year
Punching Stroke
25mm
Dimension
110*150*235mm
Weight
About 6kg
Punching Thickness
0.005-0.5mm
Transport Package
Wooden Box
Trademark
TOB
Origin
China
Production Capacity
10000 Set/Month
Product Description
Manual Coin cell Battery Electrode Disc Cutting MachineThe Coin cell disc cutter machineis used for coin cell electrode punching with customized cutting die. It's operation is simple with light weight, The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches.
| Machine model | Disc cutter for coin cell electrode punch TOB-CP60 |
| Operating | Manual |
| Punching size | Standard configuration : φ14mm punching die, φ8-24mm can be chosen |
| Application Notes | For make CR2016, CR2025 or/and CR2032 coin cell batteries, we will need at least three cutting dies: A 15mm B 16mm C 19 mm (for separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die can be used for cutting electrode discs and the 23mm cutting die for separator disc. |
| Punching stroke | 25mm |
| Punching thickness | 0.005-0.5mm electrode and separator |
| Advantages | Simple operation Light weight Can both cut electrode and separator |
| Dimension | 110*150*235mm |
| Weight | About 6kg |
| Warranty | One Year limited warranty with lifetime support |
| Reference Pictures | Disc cutter dies: |
