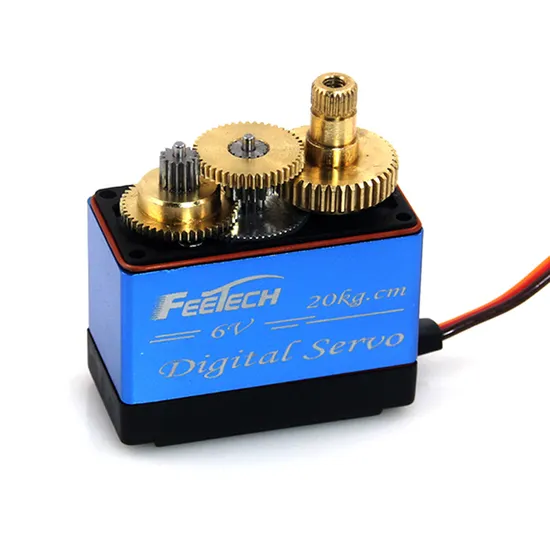

New 20kg High Torque Aluminum Case Metal Gears Digital RC Servo Fs5323m

New 20kg High Torque Aluminum Case Metal Gears Digital RC Servo Fs5323m

US$10.03
100-499 Pieces
US$9.83
500-999 Pieces
US$9.63
1,000+ Pieces

Basic Info.

Model NO.
FS5323M
Number of Stator
Two-Phase
Excitation Mode
PM-Permanent Magnet
Function
Control
Number of Poles
6
Operate Mode
Three Phase Double Beat
Type
Electromechanical
Brand
Other
20kg Servo Motor
20kg Servo Motor
for Robot Arduin
for Robot Arduin
Robotics & Education Fs90
Robotics & Education Fs90
Servo Motor
Servo Motor
Servo
Servo
Motor
Motor
Transport Package
Bag
Specification
54.5X20X40.4
Trademark
KOZHIYOU
Origin
Guangdong
Production Capacity
50000/Year

Product Description

Mechanical Specification
1 Size A:40mm B:20mm C:40.4mm
2 Weight 67g
3 Gear type Metal Gear
4 Limit angle No Limit
5 Bearing 2 Ball bearings
6 Horn gear spline 25T
7 Horn type Plastic,POM
8 Case Engineering plastics & Aluminium
9 Connector wire 300mm ±5 mm
10 Motor Metal brush motor
11 Splash water resistance NO
Features
-Standard digital metal gears servo,2BB
-Metal brush motor,Aluminium middle hull
-Wire length: 30cm
Specifications
Power 4.8V 6V
Speed 0.22sec/60° 0.16sec/60°
Torque 19kg.cm/ 263.8oz.in 21.5kg.cm/298.5 oz.in
Weight 56g (1.46oz)
Size 40*20.*40.4mm
product brand new
colour As shown in the figure

FAQ:
1,How about the quality of your product? Before shipping out, all goods have been double verified by FUT quality inspection center ,Our test engineer will check for quality, including check the basic function of the hardware and software, the appearance, the packing, the necessary accessories and power adapter plug standard.
Normally, 1-5 workdays after payment; Special requirement orders, delivery time is negotiable. Rich stock can satisfy urgent requirement.And support small orders. 3,What are the warranty and after-sale of the product?
If the products can't work after receiving it,we will replace your new product immediately and make the judgement for the issue. If the products don't meet my demand after I received it,you can return back to us, we will refund your full payment. 1-2 years warranty according to different products 1-3 months to replace new items for free. 4,Can you OEM|ODM?
Of course, we can. FUT have professional R & D Center,we can develop and manufacture according to customer's requirements. We can make your package please Such as printing your logo. 5,Are you a manufacturer?
Yes, we manufacture different controller board, Exponsion Shiled Board, sensor Module for Arduino, 3Dprinter Controller Board,Raspberry Pi,Banana pi. Our factory and office are in Shenzhen, welcome you to visit at
