Activated Carbon Shell Coconut Shell Bamboo Carbon Black Superfine Powder Grinding Mill Machine for Sale in Ethiopia

Product Description

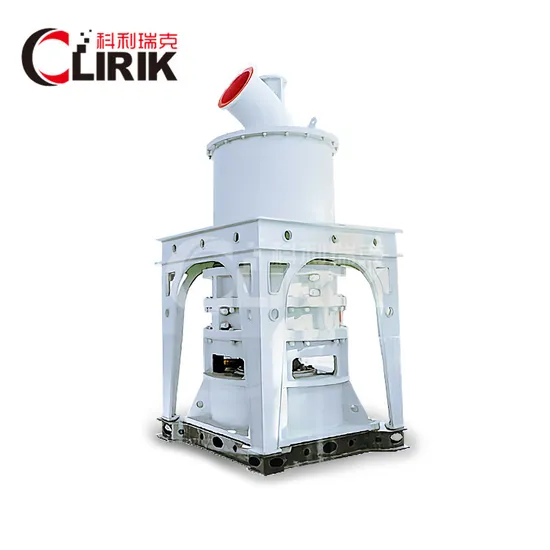

Powder Grinding Mill Stone Powder Making Machine

Powder Grinding Mill Stone Powder Making Machine
-- five models: HGM80, HGM90, HGM100, HGM125,and HGM1680L

--finished production fineness: 300 mesh~3000 mesh, 5-74micron

--the capacity (ton/hour) ranges from 0.4T/H to 45T/H
Parameter of Powder Grinding Mill Stone Powder Making Machine

Model	HGM80	HGM90	HGM100	HGM125	HGM168L
Ring Diameter (mm)	800	900	1000	1250	1680
Ring Number (PCS)	3	3-4	4	4	4
Roller Number (PCS)	18-21	24-29	28-36	30-44	30-40
Main Shaft Speed (r. p. min)	230-240	200-220	180-200	135-155	120-130
Input Size (mm)	≤10	≤10	≤15	≤15	≤20
Finished Size (um/mesh)	74-5 (200-2500)	74-5 (200-2500)	74-5 (200-2500)	100-6 (150-2000)	100-9 (150-1500)
Capacity (t/h)	0.4-4.5	0.6-6.5	1-9	2-16	3.8-30
Outlet Size L*W*H (m)	13.9*4*6.2	14.7*4.8*7.2	18*4.6*8.6	14*9*10.25	26.3*7.5*11.9

Application of Powder Grinding Mill Stone Powder Making Machine

HGM Series powder grinding mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

Work Principle of Powder Grinding Mill Stone Powder Making Machine

HGM series Quartz grinding mill mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
Features of Powder Grinding Mill Stone Powder Making Machine
High Efficiency
Under the same finished final size and the same motor power, the capacity of powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
Long lifecycle of spare parts

The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.
High safety and reliability

As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
High fineness, flexible adjustment

The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
Environment-friendly

The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
Advanced intelligent speed control device

Convenient adjusting, more uniform particle size.
Other Producte Offered

About Shanghai Clirik
We are a creative team. Since the establishment, Clirik Machinery has regarded " All is for clients" as its service goal and has provided high-quality, high-taste, high-efficient and all-around-way service for its clients.
Our certificate
Our Work Site
Customer Visit
Customer Case
Q&A
1. What advantages does your grinding mill have? -The main advantage of our gypsum grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured. 2. Can you guarantee the quality of your grinding mill? ---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc. 3.How many years have you been manufacturing the machine? ---8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality
