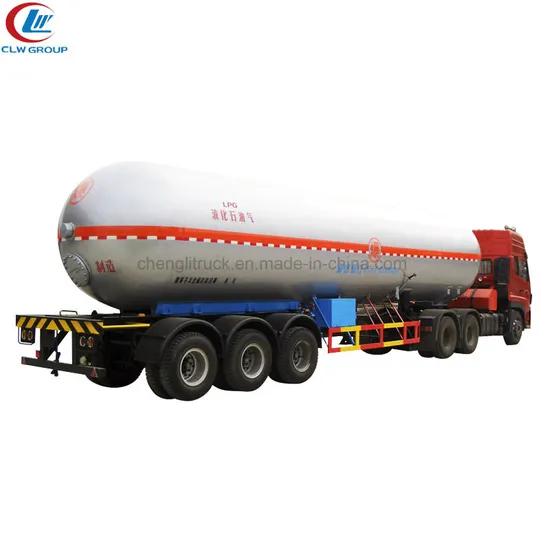

49.6m3 LPG Road Tanker 50000liters LPG Trailer
| US$29,000.00-41,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Volume of Tank
40m3, 49.6m3, 50m3, 56m3, 58m3, 60m3
Loadin Capacity
20ton, 25ton, 28ton, 30 Ton
Filling Density
0.42ton/M3, 0.5ton/M3, 0.55ton/M3
Filling Medium
Propane/Propylene/LPG
Axles Brand
BPW, Fuwa or L1 Brand
King Pin
Jost 50 # or 90 #
Tank Material
Q345r, Q370r 16mnr
Landing Gear
Jost Brand
Certicatation
CCC, ISO, ASME
Axles Number
3 Pieces
Transport Package
Nude Packing/ Waxed Bofore Shipment
Specification
CCC, ISO9001, ASME
Trademark
clw
Origin
Hubei Suizhou
HS Code
8701200000
Production Capacity
1000 Unit/Month
Product Description
Heavy Duty Factory Sale 49.6M3 50M3 LPG Tank Semi Trailer1. LPG pressure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid
Our factory could professionally manufacture 5000L-120000L LPG storage tank, 40000L-59600L LPG transport tanker trailer, LPG tanker truck, LPG filling truck, LPG gas station, LPG skid station.
Technical Parameter
| Brand | CLW |
| Product model | CLW9390GYQ |
| Gross weight(Kg) | 36132 |
| Rated load(Kg) | 20832 |
| Curb weight(Kg) | 15300 |
| Number of axles | 3 |
| Number of wheels | 12 |
| Fact cubage(L) | 50000 |
| External dimension(mm) | 12740*2480*3800 |
| Inner diameter*thickness*length(mm) | 2300*12*1235 |
| Wheel base(mm) | 6800+1310+1310 |
| Filling medium | LPG Liquid propane, |
| Loading capacity of the fifth wheel(Kg) | 16000 |
| Tire Specification | 12R22.5 |
| Filling Rate(t/m³) | 0.42 |
| Design Pressure(Mpa) | 1.61 |
| Design Temperature(ºC) | 50 |
| Tank Material | Q370R |
| Service Years | Ten Years |
| Standard Equipment | BPW bridge (13T),12R22.5 tire(12 units including one spare tire), JOST king pin,JOST leg(28T),pressure meter,thermometer,emergency cutting valve ,ball valve,safe valve,two tool boxes, double single outlet system |
| Making Standard | GB150-1998 Pressure Vessels Safety and Technical Supervision Regulation of Safety Supervision for Liquefied Gas Tank |
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
If you have any inquiry about LPG products, please feel free to contact us.
NAME CARD
CHENGLI SPECIAL AUTOMOBILE CO.,LTD.
Name: Katy Lee
Tel&Fax: +86-027-83796298
Mobile +86-155 2714 0528
Web: chenglitruck.en.made-in-china.com
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China
Welcome to visit our factory and place your order !!!
