300V 600V 12 14 16 18 AWG 2 3 4 Cores Soow Sjow Sjoow Underwater Oil Water Resistant Rubber Sheath Flexible Power Cable

Product Description

Product Description
300V 600V UL 6 8 10 12 14 16 18 AWG 2 3 4 CoresStranded Copper SOOW SJOW SJOOW Electric Flexible Rubber Cable

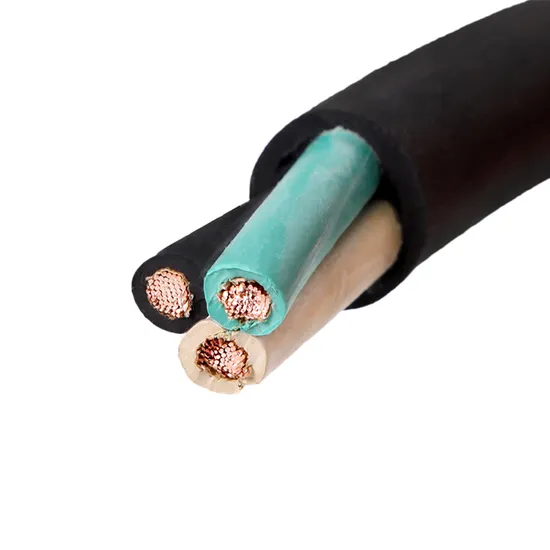

SJOOW Rubber Cable Construction:
Conductor : Flexible stranded bare copper in accordance with ASTM B-174 and UL 62
Insulation : Ethylene Propylene Diene Monomoer (EPDM) insulation or Ethylene Propylene Rubber (EPR)
Jacket: Overall jacket of black Chlorinated Polyethylene (CPE), which is oil, solvents, ozone, weather, sunlight,
and water resistant,or CPE compound Class 1.12 90ºC comply with Table 11 of UL 62
Color Code: ICEA S-58-679
2/c-black, white; 3/c - black, white, green; 4/c - black, white, red, green
SJOOW 300V Rubber Cable Application: Portable tools, equipment, small motors and associated machinery, appliances, equipment exposed to oils, solvents, flame, moisture and other electrical equipment where flexibility and durability are required. For applications up to 300 volts
and for temperatures of -40°C to +90°C.
Product Parameters:

SJOOW Rubber Power Cable Parameter
Part Number	Conductor Size	No. of Cores	Conductor Stranding	Nominal Insulation Thickness	Nominal Jacket Thickness	Nominal Overal Dia	Weight	Ampacity
	Awg			mm	mm	mm	lbs/kft	Amps
18-02 SJOOW	18	2	16/30	0.76	0.76	7.11	50	10
18-03 SJOOW	18	3	16/30	0.76	0.76	7.62	60	10
18-04 SJOOW	18	4	16/30	0.76	0.76	8.38	71	7
16-02 SJOOW	16	2	26/30	0.76	0.76	7.87	53	13
16-03SJOOW	16	3	26/30	0.76	0.76	8.38	66	13
16-04 SJOOW	16	4	26/30	0.76	0.76	9.14	83	10
14-02 SJOOW	14	2	41/30	0.76	0.76	8.64	80	18
14-03 SJOOW	14	3	41/30	0.76	0.76	9.14	88	18
14-04 SJOOW	14	4	41/30	0.76	0.76	10.16	110	15
12-02 SJOOW	12	2	41/30	0.76	1.14	10.41	104	25
12-03 SJOOW	12	3	41/30	0.76	1.14	10.92	131	25
12-04 SJOOW	12	4	41/30	0.76	1.14	11.94	163	20
10-02 SJOOW	10	2	103/30	1.14	1.52	13.72	177	30
10-03 SJOOW	10	3	103/30	1.14	1.52	14.73	225	30
10-04 SJOOW	10	4	103/30	1.14	1.52	16	279	25

Company Profile
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
Certifications
Packaging & Shipping
FAQ
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,
henan province,china. 2.How can I get the quotation of the products ? Pls send inquiry to us,we will reply you within 12 hours. 3.What does your company do regarding quality control? 1) all raw materials we selected are the highest quality. 2) professional and skillful workers care every details in handling the producing. 3) quality control department is specially responsible for quality checking in each process. 4.Do you provide oem project service? Yes,oem & odm order is warmly welcomed. Our technical engineers can give you the professional suggestions. 5.Can I get the sample? Yes,pls send inquiry to us,then our sales manager will arrange the samples for you
