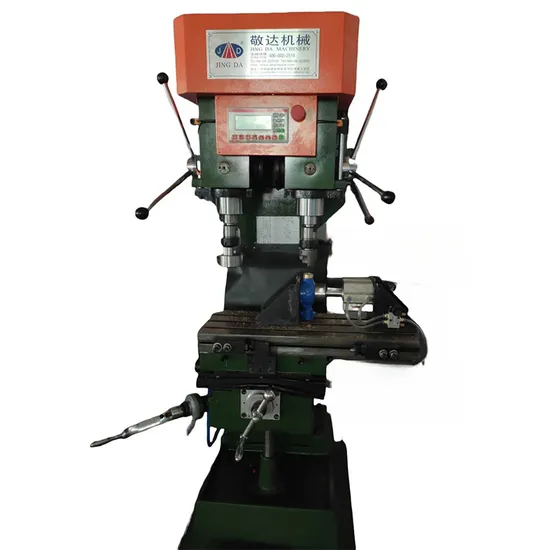

High Quality Vertical Drilling and Tapping Machine for Faucets (JD-280)

High Quality Vertical Drilling and Tapping Machine for Faucets (JD-280)

US$5,666.00 1 set (MOQ)

Basic Info.

Model NO.
JD-280
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
4
Hole Diameter
>200mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Maximum Bore Diameter
50mm
Maximum Tapping Diameter
40mm(Brass)
Transport Package
Standard Wooden Case
Specification
ISO9001: 2000
Trademark
Jingda Machinery
Origin
Fujian, China
HS Code
84543099
Production Capacity
5~10 Sets/Month

Packaging & Delivery

Package Size
147.00cm * 102.00cm * 194.00cm
Package Gross Weight
850.000kg

Product Description

√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time
manufacturing & processing machinery,pressure die casting machine,die casting machine,casting machine,tapping machine,drilling and tapping machine,industry machinery,high quality machine,metal casting machine,gravity die casting machine,sand casting machine
Over 20 years==factory==exporting license==quality control==competitive price==own technology== delivery time==good & direct service
------------------------------------------------------------------------------------------------------------------------------------------
Double Axis Compound Machine
Details:
Maximum Bore Diameter: 50mm(brass)
Maximum Tapping Diameter: 40mm(brass)
Main Shaft Stroke: 120mm
Main Shaft Motor: 2.2-6kw, 3-4kw
Rotated Speed of Main Shaft(Drilling): 700-1100r/min
Rotated Speed of Main Shaft(Tapping): 380-650r/min
Size of the Machine: 1000mm*700mm*1900mm
Net Weight of the Machine: 850kg
Function
1. Suit for drilling and tapping in quantity productions at one time.
2. Both the left and right of wordbench adopt cylinder for minimal vibration.
3. Clamp system use cylinder to hold the mould for fast fixing.
4. Slider system adopt guideway ultrasonic frequency quenching and lubrication system for better capability
Specifications
1)Passed ISO9001: 2000
2)Competitive Price
3)Top Product Quality
4)Prompt Delivery
On technology, we constantly innovate, and strive to high-tech and high quality;
On the process, we strive for perfection, breakthrough tradition and strive for excellence;
On management, we emphasize science, pursue internationalization management concept;
On the service, we adhere to the principles, advocate the unique principle of "customer first";
Company tenet: "carefully manufacture, meticulously design, sincerely serve" for the purpose.
Double Axis Compound Machine
Maximum Bore Diameter 50mm(brass)
Maximum Tapping Diameter 40mm(brass)
Main Shaft Stroke 120mm
Main Shaft Motor 2.2-6kw, 3-4kw
Rotated Speed of Main Shaft(Drilling) 700-1100r/min
Rotated Speed of Main Shaft(Tapping) 380-650r/min
Size of the Machine 1000mm*700mm*1900mm
Net Weight of the Machine 850kg
