Infinity Optical Lab Instrument 50X~1000X Mds400 Metallographic Inverted Microscope
Basic Info.
Model NO.
MDS400
Magnification
50X~1000X
Type
Metallographic
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
LED or Halogen
Shape
None
Usage
Research
Principle
Optics
Principle of Optics
Infinity Optical
Model
Mds400
Application
Geology, Industry
Head
Trinocular
Eypiece
Wf10X/22mm
Objectvies
Lm Plan FL 5X/10X/20X/50X
Illumination
12V/50W Halogen or 5W LED
Packing Size
660*590*325mm
Gross Weight
17 Kgs
Certificate
CE, ISO9001
Delivery Time
7~15 Days
Transport Package
Carton
Specification
660*590*325mm
Trademark
Chongqing Scope
Origin
China
HS Code
90118000
Production Capacity
5000pieces/Year
Product Description

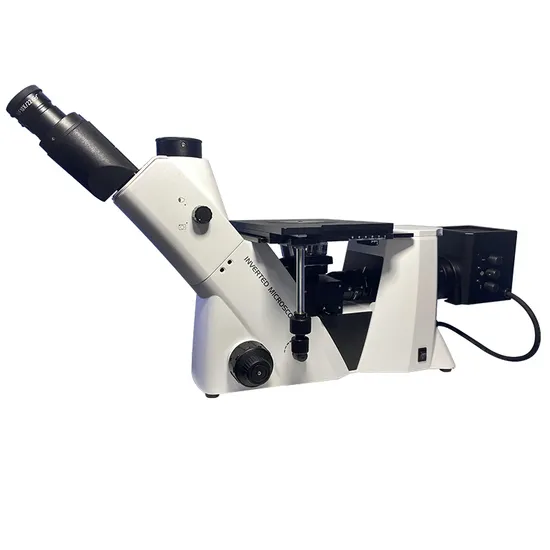

Product Description MDS400 Inverted Metallurgical Microscope
MDS400 series is a professional inverted metallographic microscope. It can be widely used in medical and health institutions, laboratories, research institutes, colleges and universities to do biological, pathological, bacteriological observation, teaching and research, clinical experiments and routine medical examination; factory, laboratory analysis and identification of materials.
Metallographic microscope is mainly used to analyze the relationship between the steel structure and its chemical composition through the examination of the microstructure and quantitative analysis of impurities.
Make observation in bright field. Oversize view field eyepiece, view field up to 22mm for comfortable observation. Oversized three-layer working stage, more choice for samples. Light distribution (both): 100 : 0 (100% for eyepiece) ; 80 : 20 (80% for trinocular head and 20% for eyepiece)
Product Parameters
| Microscope Equipment Specification | |
| Items | Outfits |
| Eyepiece | WF10X/22mm(adjustable) |
| WF10X/22mm(adjustable,reticule 0.1mm) | |
| Metallurgical LWD Infinity Plan Objective | LM Plan FL 5X/10X/20X/50X (Semi Apochromatic Objective) |
| Seidentopf Trinocular Head | Inclined 30°, interpupilary distance 48-76mm Light distribution(both): 100:0(100% for eyepiece); 80:20(80% for trinocular head,20% for eyepiece) |
| Nosepiece | Quintuple |
| Mechanical Stage | Stage size: 210*180mm, Moving range: 50*50mm, Scale: 0.1mm |
| Coaxial Coarse&Fine Focusing Unit | Coarse stroke: 10mm Fine stroke per rotation: 0.2mm Fine diversion: 2µm |
| Polarizing Unit | Polarizer/Analyzer |
| Illumination | 12V/50W Halogen(Input Voltage 110V~240V) |
| Filter | Blue |
| Packing Size | 660*590*325mm |
| Weight | 17kg(gross), 12.5kg(net) |
| Optional | |
| Metallurgical LWD Infinity Plan Objective | LPL 80X LM Plan FL 100X (Semi Apochromatic Objective) |
| Illumination | 5W LED lamp(Input Voltage 110V~240V) |
| Filter | Green/ Amber/Grey |
| C-mount | 1X/0.75X/0.5X(Focus adjustable) |
| Adapter for digital Photograph | Use for CANON/NIKON/OLYMPUS etc. |
