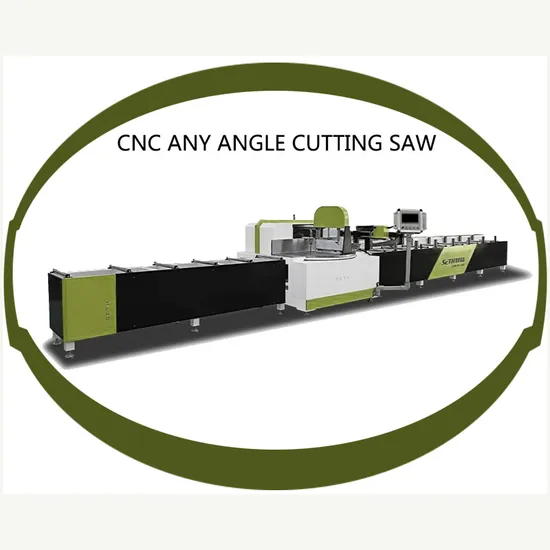

Industrial Aluminium CNC Cutting Saw Machine

Product Description

Jinan SETH Intelligent Equipment Co.Ltd.
Product Description
Industrial Aluminium CNC Cutting Saw Machine
1.Feature:
☆ Mainly used for cutting and blanking of industrial aluminum profiles. The sawing angle can be adjusted arbitrarily between 23° and 157.5°.
☆ The servo feeding mechanism can input the dimensions of several profiles to be cut at one time, enabling continuous cutting of different lengths from 0 to 13000mm, enabling direct input of processing dimensions, and changing the sawing length without returning to the reference point.
☆ This machine adopts CNC technology and can complete automatic positioning, cutting and blanking of profiles of different sizes.
☆ Use special carbide saw blades for aluminum materials, with outer diameter up to 700mm, high line speed and high processing accuracy.
☆ The CNC transmission adopts high-standard gear and rack, with high transmission precision, accurate positioning and stable operation.
☆ The high-precision spindle makes the saw blade rotate stably and effectively improves the surface quality of the workpiece.
☆ There is a saw blade sealing device under the workbench, which has good chip removal effect. It has a follow-up opening and closing saw cover, which is safe and reliable.
2.Technical Parameters

Power supply	380V/50Hz
Total Power	18kW
Saw head power motor:	15KW/ 3000r/min
Servo motor:	1+2KW
Working pressure	0.6~0.8MPa
Sawing length:	2L/min
Sawing width:	max 350mm
Sawing height:	max 250mm
Sawing angle:	23°- 157.5°
Feed speed:	Stepless speed adjustment 0-3m/min
Saw blade specifications:	ø700 × ø30 × 5.5× Z100
Profile cutting angle tolerance:	± 3'
Repeated sawing length accuracy:	≤ 0.5mm
Cutting surface roughness:	Ra12.5μm
Dimensions	27000× 2100× 1900 mm
Weight:	6500kg

Detailed Photos
Application
Company Profile

Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain
wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized
according to customer requirements of different grades of products.
Our company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications,
excellent product design and development engineers, skilled production engineers, experienced production management team
and after-sales service that providing you with a strong guarantee.
We have all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize
the design of equipment, processing,assembly, test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, saw machine,milling machine,welding machine,corner cleaning
machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle,
Please join hands with SETH to lead intelligence.
Certifications


FAQ
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine,
CNC milling machine, aluminum punching machine, end milling machine, copy router and c
orner connector saw, etc; Wood window machines: wood saw, wood window frame machine,
vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
We have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
