Heavy Duty Z3050X16 Radial Drilling Machine Manufacturers 50mm Metal Rocker Arm Drilling Machine for Metalworking

Product Description

Product Overview
Heavy Duty Z3050x16 Radial Drilling Machine Manufacturers 50mm Metal Rocker Arm Drilling Machine For Metalworking Radial drilling machine is a kind of hole processing equipment, which can be used for drilling, reaming, reaming, tapping, end face repair and other forms of processing. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among all kinds of drilling machines, radial drilling machines are easy to operate, flexible, widely applicable and typical, especially suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general machining workshops. Radial drilling machine is widely used in single piece and small and medium batch production to process holes of workpieces with large volume and weight. The radial drilling machine has a wide processing range and can be used to drill various screw holes, threaded bottom holes and oil holes of large workpieces. The radial drilling machine is used to process small and medium-sized holes on heavy or porous workpieces. It is mainly composed of a base, a column, a rocker arm, a spindle box, a spindle worktable, etc. When the radial drilling machine works, the radial arm can rotate around the column, and the spindle box can move radially on the radial arm. In this way, the drill can be aligned with the axis of each hole to be machined for hole processing. It is flexible to use. Generally, the workpiece is clamped on the workbench when drilling. When machining large workpieces, the workpieces can be clamped on the base of the drilling machine. According to the different heights of the workpiece, after loosening the locking device, the rocker arm can move up and down along the column to make the headstock and the drill at the proper height.
PRODUCT SPECIFICATIONS

Specification	Z3032X10	Z3040X14	Z3050X16	Z3063X18	Z3080X20
Max drilling diameter (mm)	32	40	50	63	80
Distance between spindle axis and coulumn(mm)	170-1100	260-1210	350-1500	400-1600	550-1600
Spindle travel(mm)	120	260	350	400	450
Spindle taper(morse)	MT4	MT4	MT5	MT6	MT6
Number of spindle speeds	6	12	12	16	16
Steps of spindle feeds	3	3	4	16	16
Radial ratation angle	360	360	360	180	180
Main motor (kw)	1.5	2.2	4	5.5	7.5

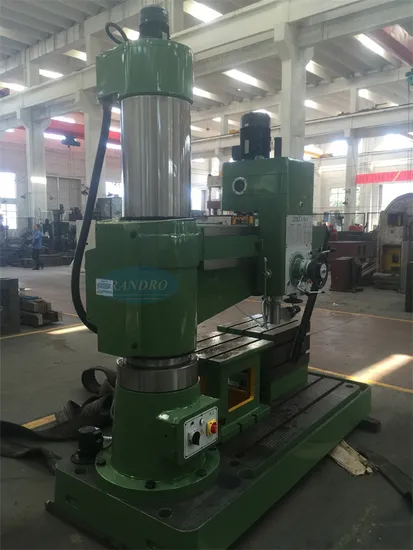

Product Show
Main structure: the radial drilling machine is mainly composed of the base, inner column, outer column, rocker arm, spindle box and workbench.Main features of mechanical radial drilling machine.
1. Two speed motor;
2. Single handle variable speed;
3. Interlocking and clamping;
4. Mechanical and electrical double insurance;
5. Open the door, cut off the power and press the emergency stop button.
Packaging & Shipping
OUR SERVICES
01 PRE-SALES SERVICE:
We provide presales service in various forms, making investment budge, manufacturingplanning, so that customers can make a reasonable plan with less cost.
We will fist check customer's goods and goods size, then we will recommend suitablewrapping machine to 100% suitable.
We will recommend and offer machine according to customer's use and purchasebudget.
02 IN-SALE SERVICE:
We will supply each manufacturing step photo for customer checking on time.
We will prepare packing and shipment according to customer's needing in advance.
Testing the machine and making video for customer's checking.
03 AFTER-SALE SERVICE:
We will guarantee the machine quality for 2 years.
We provide free training and answer customer's question on technology in time.
Customer feedback

Company Profile
Henan Randro Machinery Equipment Co., Ltd. is an enterprise specializing in the production of CNC machine tools, lathes, machine tools, and rolling presses. Our products have passed the international ISO9001:2008 quality management system certification. We have established good relationships with customers from over 100 countries.
Main Products: The company operates various specifications of products, including cold bending forming equipment and other mechanical equipment, such as machine tools, tapping machines, slotting machines, boring machines, air hammers, gear hobbing machines, nail making machines, marking machines, etc. There are a wide variety of products, welcome everyone to visit and guide the factory!
FAQ
Q1. How to choose an appropriate machine ?
The machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.Q2. What about the delivery term?
Generally speaking, we need about 30 days to deliver the machine. If you require a short time to deliver the machine, we can make it in short time due to a large number of spare parts we stored.Q3. Why are the machine prices higher than others?
We insist quality drives the value for our customers. From each step of the machine producing till the choosing of the electric elements brands, We all take it very seriously.Q4. Do you have after-sales support?
We have a professional after-sales team. If required, we can send our engineers to go to the customers' site to guide to the machine installation and debugging.Q5. How to get a quotation?
1. Please tell we what kind of raw material and the max. thickness, and the profiles designs. Then I can quote you accordingly.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
