Tonghui Th1942 RS232c, Supporting Scpi Command Digit Multimeter

Product Description

Product Description https://ckt2017.en.made-in-china.com/product-list-1.html
Brief Introduction
TH1941 4 1/2-digit true-RMS digital multimeter and TH1942 50,000-count digital multimeter are voltage,current,resistance tester with multi functions and low cost. The instrument can stably perform measurement at high speed as several times as competitive instruments in this class. It provides excellent performance, such as maximum reading of 21,000/51,000 counts, maximum DC voltage accuracy of 0.02%, and low cost to give you a best choice. Having VFD dual-display with high brightness, TH1941/TH1942 can synchronously display measurement parameters, such as AC/DC voltage or current, AC voltage/current and frequency to improve measurement efficiency and display results clearly. The instrument is equipped with SMD component inside to reduce density and physical size. The instrument comes standard with RS232C communication interface and common communication software is optional to meet the need of communication with computer, data analysis and statistics, and building up automatic test system. The instrument accepts SCPI command to ensure compatibility of communication software.
Technical Parameter

Measurement Parameters	DC/AC Voltage, DC/AC Current, Resistance,Frequency, Period, Continuity, Diode
Math Function	%, dB, dBm, REL
Range	Auto, Manual
Display	VFD, dual display
Reading Mode	Single display: all measurement parametersDual display: ACV+DCV, ACI+DCI, ACV+Hz, ACI+Hz, Readout+dB/dBm, Readout+Max/ Min
Trigger Mode	INT/MAN/BUS
Reading Hold	To find out the best stable reading for each data block of the given reading number according to given accuracy
Comparator	To judge HI, IN, LO and display, with ALARM atHI/LO(selectable)
Interface	RS232C(only TH1942), supporting SCPI command

Measurement Condition
Calibration Cycle: one year Operation Humidity:18°C−28°C, ≤90%RH; When resistor range is 10M and 100M, ≤70%RH Warming up Time: 30 min Accuracy is expressed as: +/- (% of reading + % of range) Temperature coefficient: 0°C--18°C & 28°C--40°C,+0.1%×accuracy /°C Following is the specification at slow mode, others please refer the operation manual
Model		TH1942
Speed (counts/second)		Slow		Middle				Fast
DCV,DCI		5		10				25
ACV,ACI		5		10				25
Ω		5		10				25
AC+DC		1.2		1.4				1.5
Freq		1		2				3.9
DC Voltage		Max. Reading	Resolution			Accuracy			Inputimpedance
Range	200mV/500mV	510.00	10µV			0.02+0.016			10MΩ
	2V/5V	5.1000	100µV			0.02+0.008			11.1MΩ
	20V/50V	51.000	1mV			0.02+0.008			10.1MΩ
	200V/500V	510.00	10mV			0.02+0.008			10MΩ
	1000V	1200.00	100mV			0.02+0.008			10MΩ
DC Current		Max. Reading	Resolution			Accuracy			voltage/shunt
Range	2mA/5mA	5.1000	0.1µA			0.05+0.010			<0.6V/100Ω
	20mAV/50mA	51.000	1µA			0.05+0.008			<0.06V / 1Ω
	200mA/500mA	510.00	10µA			0.05+0.008			<0.6V / 1Ω
	2A/5A	5.1000	100µA			0.25+0.010			<0.1V / 10mΩ
	20A	20.000	1mA			0.25+0.010			<0.6V / 10mΩ
AC Voltage		500mV	5V		50V		500V			750V
Resolution		10µV	100µV		1mV		10mV			100mV
Accuracy	20~50 Hz	1.0+0.08					------
	50~20 kHz	0.5+0.06	0.35+0.02				0.50+0.03
	20k~50 kHz	1.5+0.1	1.00+0.04
	50k~100 kHz	3.0+0.3	3.0+0.1
AC current		5mA	50mA		500mA		5A			20A
Resolution		0.1µA	1µA		10µA		100µA			1mA
Accuracy	20~50 Hz	1.50+0.16					2.00+0.16
	50~2 kHz	0.5+0.08					0.5+0.1
	2k~20 kHz	2+0.16	2+0.12				------
Load Voltage/Shunt Resistance		Same as DC current
Resistance		Max. Reading	Resolution			Test Current			Accuracy
Range	200Ω/500Ω	510.00	10mΩ			0.5 mA			0.10+0.010
	2 kΩ/5 kΩ	5.1000	100mΩ			0.45 mA			0.10+0.008
	20 kΩ/50 kΩ	51.000	1Ω			45μA			0.10+0.008
	200 kΩ/500 kΩ	510.00	10 Ω			4.5μA			0.10+0.008
	2MΩ/5 MΩ	5.1000	100 Ω			450nA			0.15+0.008
	20MΩ/50 MΩ	51.000	1kΩ			45nA			0.30+0.010
Frequency		Max. Reading	Resolution			Accuracy			Sensitivity
Range	5~10Hz	9.9999	0.0001Hz			0.05+0.02			200mV rms
	10~100Hz	99.999	0.001Hz			0.01+0.02			300mV rms
	100~100kHz	999.99	0.1Hz			0.01+0.008			300mV rms
	100k~1MHz	9999.9	10Hz			0.01+0.008			500mV rms

General Specifications
Working temperature & humidity		0°C-40°C, ≤90%RH
Power supply	Voltage	198V-242VAC,99V-121VAC
	Frequency	47.5Hz-63Hz
Power consumption		≤ 10 VA
Dimensions (W×H×D)		277mmx115mmx340mm
Weight		Approx. 2.2 kg

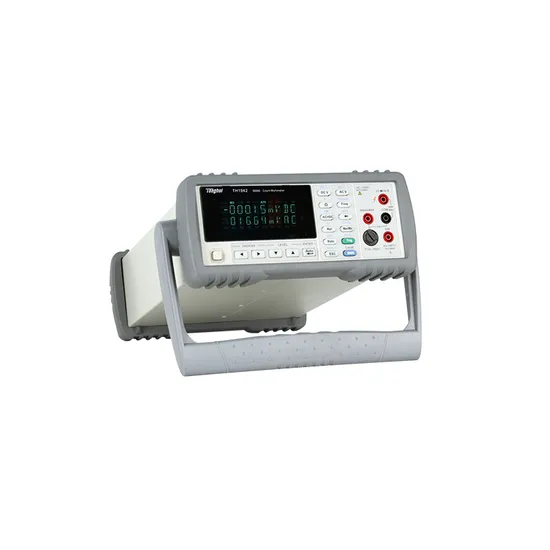

Detailed Photos
