Table Form Construction Steel Formwork Green Formwork Table Formwork

Product Description

Table Form Construction Steel Formwork Green Formwork Table Formwork

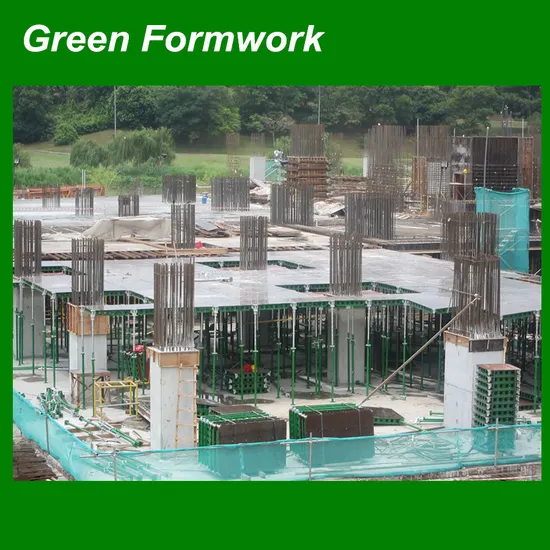

#Green Formwork - perfect slab formwork solution for flatslab or beam-less structure projects
An advance aluminium/steel panel prop formwork system which allow early stripping operation. It provides suitable formwork solutions to flatslab or beam-less concrete structure projects.
Simple & Innovative
√ Only few components : Panel - Steel fames and bamboo plywood
Prop with quick release

√ Do not require cross braces and tripods
√ Easy to transfer both horizontally and vertically
Fast & Efficient :
√ 3-4 worker team for erection,stripping and removal
√ Can acheive 60-80m2 work done per man per day .
Safe & Reliable
√ Stable system with 6 direction locking restriction
√ No human lifting above shoulder required
* Basic Components / Specification

Basic Components	Dimension	Unit Weight
Panel1812	1.8X1.2M	45kg
Prop with drop head	2.25-3.6M	23kg
Other accessories

*Erection Instruction - Safe,fast and easy
*Project samples
Till now, Green Formwork has been used in U.S.A ., Canada, Czekh republic,U.A.E, Malaysia, Indonesia,Philippines,Thailand,Burma, Cambodia.
*Plant warehouse ,stocks and quick delivery
*Company
QINGDAO SCAFFOLDING CO.,LTD." is the leading manufacturer and exporter in whole China for all kinds of scaffolding products and formwork systems. We export large quantity to Europe, Australia, New Zealand, U.S.A., Canada, South America and African countries. More than 20 years experience of manufacturing on scaffolding has won our customers approval and satisfaction.
Please be advised and see the attached catalogue of the products which we are producing:
1)SCAFFOLDING TUBES AND COUPLERS;
2)SCREW JACKS;
3)RINGLOCK SYSTEMS;
4)KWIKSTAGE SYSTEMS;
5)HAKI SYSTEMS;
6)ADJUSTABLE STEEL PROPS
7)FORMWORK AND FORMWORK ACCESSORIES;
8)ALUMINIUM /STEEL FORMWORK
If you have any inquiry or any projects in hand ,please feel free to contact with me .
------------------
