200cbm-2000cbm Per Day OSB/Fosb/Lsb/Chipboard/Particle Board Production Line

200cbm-2000cbm Per Day OSB/Fosb/Lsb/Chipboard/Particle Board Production Line

US$1,480,000.00-10,000,000.00 1 Set (MOQ)

Basic Info.

Type
Hot Press Machine
Automatic
Automatic
Certification
ISO
Capacity
300-2000cbm Per Year
Installation
Guidance
Commissioning
Supply
Transport Package
Customized Shipping Package
Specification
4′/6′/8/9′
Trademark
GINZHUO
Origin
China
HS Code
8465990000
Production Capacity
80000-600000cbm/Year

Product Description

Our company's independently developed double steel belt continuous press production line ,The press width is 4-9 feet, length 18-45 meters, The annual output of 100000-600000 cubic meters. We have introduced the world's most advanced design concepts and made new designs in areas such as press inlet, heat platen, electrical control and visualization. It has the characteristics of high cost-effectiveness, excellent and stable performance.
Manufacturing technique of MDF board production:
In this program, the MDF production line is mainly made of artificial fast-growing small diameter wood, branches, cutting leftovers and processing leftovers. After chipping, screening, hot grinding, glue spreading, drying, air separation, Mat-forming, pre-pressing, edging and hot pressing, it enters the high-speed double diagonal saw for fixed size cutting. After the cutting, the slab board is sent to the star style cooling machine by transport. The well-stacked boards are sent to the sanding saw line for cutting by forklift. The cut boards enter the sorting area for grading. The finished products are transported to the finished products warehouse by forklift.

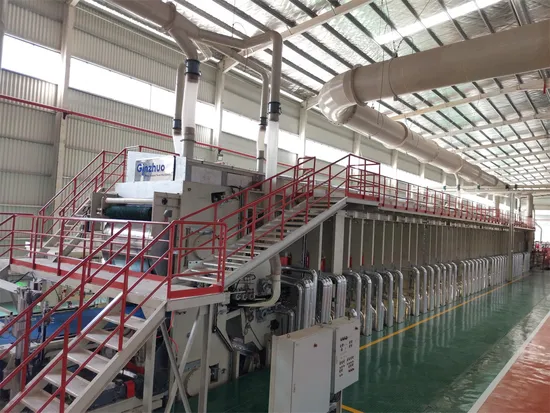

Continuous press section
Press parameter 4' 6' 8' 9'
Designed max pressing speed mm/s 1500
1500 1500
1500
Heating platen width mm 1430 2050 2650 2950
Steel belt infeed roller diameter mm 2070 2070 2070 2070
Steel belt discharge roller diameter mm
2100
2100
2100
2100
Roller rod diameter mm 18 18 18 18
Steel belt width mm 1450 2070 2670 2970
Max section pressure Mpa 5 5 5 5
Heating zone length According to production capacity and hot pressing factor
Total power According to production capacity and product type

Production line parameter
Item Unit MDF/HDF PB/LSB/SPB OSB/FOSB
Design capacity CBM/Day 300-1000 400-2000 300-2000
Press szie FT 4-9 4-9 4-9
Press speed MM/S Max 1800mm Max 1000mm Max 1000mm
Thickness mm 1.8-32mm 6-40mm 6-40mm

Mat-forming section
Pre-press section
Diagnal saw
Board handling and finishing section
Stacking crane and automatic storage

Package and loading
