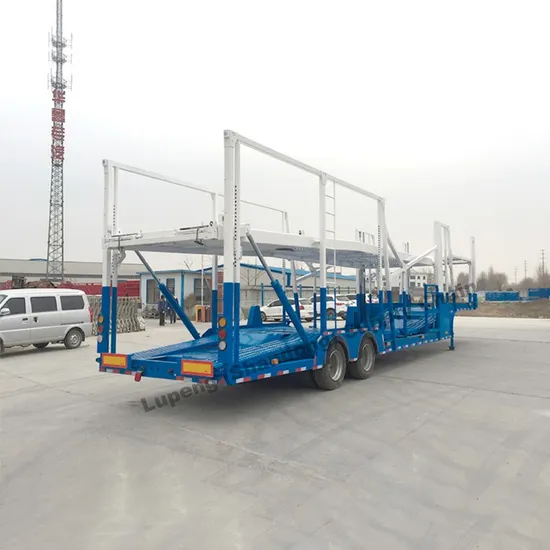

High Tensile Double Box Extruded Inboard Tilt 3 Axle Car Carrier Semi Trailer Cylinder Hydraulic

Product Description

Suitable for the transportation of cars,commercial vehicles,other passanger cars.(a)This system mainly adopts the transportation vehicles semi-trailer rectangular pipe welded together frame structure, the overall high intensity, light weight, good appearance, have fully enclosed type, half hanging, semi-enclosed and frame type to wait for a few kinds structure, the use of safe and reliable(b)The model fully absorbed the features of similar domestic and foreign products, adopt unique lifting system, the key part adopts renowned domestic and foreign products, load ability and high reliability(c)The whole upper platform can be used on certain height, thus the can carry a different specifications od cars, MPV and SUVs and pickup truck, miniature passenger vehicles such as 5-10 vehicles. User's special customized vehicles can possess such special vehicle smoked full function, can transport various kinds of automobiles, return distribution, and other functions. The car is realized commodity car sales ideal tool for zero miles per hour

General
Overall Dimension		15000mm*2500mm*3800mm(Dimensions can be designed)
Number of Car		6(car quantity can be optional,6-12 cars)
Total Weight		11000kg		Pay Load	40ton
Tell us the car outside dimensions,car carrier trailers can be designed
Running Gear
Suspension	Tri-axle 10-pcs leaf spring suspension with equalizer beam (Air suspension)
Tires	10.00R20/8.25R20/1100R20, 12units
Axles	FUWA axle, 13T capacity(BPW,YORK,SAF optional)
Brakes	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main Beam	Q345B steel,Height 500, upper 18mm, lower 18mm. Mid web 10mm
Cross Beam	Mild Alloy Q235
King Pin	Size: 50# (2'') or 90#(3.5''); Type: welded or assembled
Landing Gear	Single side operation or double side operation, Static capacity 28Ton
Appendix	1 tool box, length 1.0m
Electrical & Paint
Electrical			Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Lights & Reflectors			24V, 7 lines
Wiring			ISO standard air connector, 24V 7 pin plug socket
Air/Elec. Connector			Color upon request
Paint			According to your requirements

Spare Parts
All spare parts use the products of foreign and domestic famous producers, are purchased,inspected and used strictly accroding to the requirements of quality system docements,and ensuregood performance of whole vehicle.
Customize
According to clients' requirements, our engineers can customize different axles and loading weight.Our semi trailer price is really good with high quality ensured.
Repairs
Common repairs include brake jobs, wheel seals and adding additional equipment such as toolboxes to trailers. We can offer customizations and repairs specific to your requirements as our access to parts is extensive. Our parts technicians can find almost any part that you may require for your trailer. We are dedicated to keeping your trailer running in top shape.


Company Profile
Packaging & Shipping
FAQ 1.Does your company has your own factory?Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous where is manufacturingvarious trailers in Shan Dong,China.2.Can you satisfy my special requirement?Definitely!We can make the trailers based on your requirement.3.What's your minimum quantity?1 set.4.How to trust us?The good faith management is our philosophy,and you are welcome to visit our company at any time.5.What's your payment term?We accpet both T/T and L/CT/T:30% deposit by T/T,70% balance should be paid before shipment.L/C:100% irrevocable Credit of Letter.
