Product Description

Jaw Crusher Stone Crusher Plant quarry gold rock granite quartz basalt lime river stone jaw impact cone VSI crusher crushing machine production line plant price Product Description
Jaw crusher are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock salt lump is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock salt lump is crushed because it has a lower breaking point than the opposing metal piece.Jaw crusher movement is obtained by using a pivot point located at one end of the "swing jaw", and an eccentric motion located at the opposite end.
PE series jaw crusher is used for coarse crushing different kinds of ores and rocks, and PEX series jaw crusher is used for intermediate and fine crushing.

SGS Commissioner checked our jaw Crusher
Jaw crusher machine uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the moving jaw plate move by a regulated track. Therefore, the materials in the crushing cavity ,which is composed of fixed jaw plate, moving jaw plate and side liner,can be crushed and discharged through the discharging opening.

Common Jaw Crusher	European Jaw Crussher

Product Parameters

Model	Max feeding size (mm)	Capacity (m3/h)	Discharge size (mm)	Main shaft speed (r/min)	Overal dimension (mm)	Power (kw)	Weight (kg)
PE150*250	125	1-3	10-40	285	896X745X935	5.5	700
PE200*300	180	2-8	20-70	285	1256X1100X1120	7.5	800
PE250*400	210	3-13	20-80	300	1430X1310X1340	15	3000
PE400*600	340	10-40	40-90	275	1700X1732X1653	30	7200
PE500*700	425	34-68	50-100	275	1957X2067X1853	55	11320
PE600*900	500	45-120	75-200	250	2252X2264X2380	75	17600
PE750*1060	630	80-160	80-200	250	2728X23402808	90	30530
PE800*1060	680	80-160	100-200	250	2778X2340X2808	90	31500
PE900*1200	750	90-200	100-200	200	3134X2736X3220	110	50000
PE1000*1200	850	197-214	195-265	200	3234X2736X3220	110	51000
PE1200*1500	1000	250-500	150-300	200	3440X3100X3500	220	98000
PEX150*750	125	5-15	10-40	300	1220X1480X1180	15	3600
PEX250*750	210	8-22	10-50	300	1400X1617X1412	22	4980
PEX250*1000	210	10-32	15-55	300	1625X1944X1432	37	7350
PEX250*1200	210	12-38	15-60	300	1625X2144X1432	37	8700
PEX300*1300	250	15-65	20-90	300	1930X2400X1747	75	11600

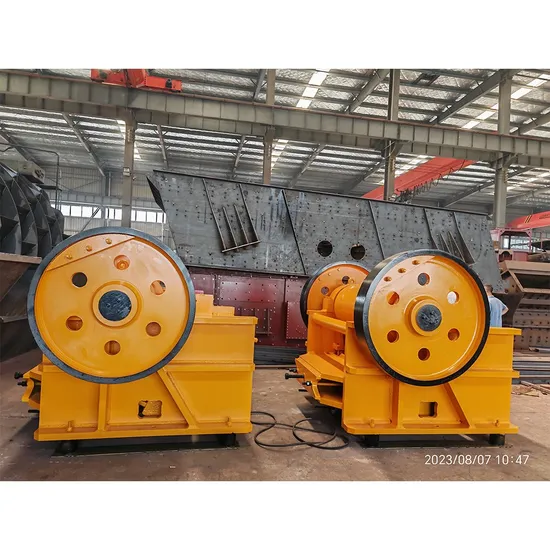

Detailed Photos
More about our machines
What's more, We also produce and supply all kinds of crushing equipments and mineral processing equipments, including jaw crusher, cone crusher, impact crusher, vibrating feeder, vibrating screen, rod mill, stone washer, belt conveyor, screw classifier, flotation machine, magnetic ore separator, shaking table, spiral chute, leaching tank, thickener, rotary kiln, rotary dryer, frame filter press, ect. If you have any interest in our products, Please do not hesitate to contact with us for more details!
