Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System

Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System

US$180.00-378.30 1 Piece (MOQ)

Basic Info.

Model NO.
SUB-D
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001
Brand
Kemapower
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product Name
Charge Controller Solar Hybrid off Inverter
Transport Package
Safey Packing
Specification
1.5-5.5KW
Trademark
KEMAPOWER
Origin
China
HS Code
8504403090
Production Capacity
60, 000PCS/Year

Product Description

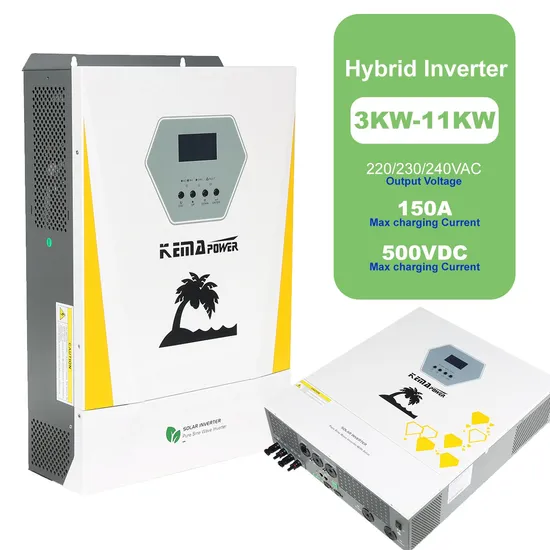

Off Grid Hybrid Solar Inerter
SUB-D 3-11KW
KEY FEATURES High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1 3 in 1 design, Power Inverter + MPPT controller + Grid Charger Working without battery during daytime Support lithium activation wake-up and cold start function Auto restart while AC is recovering Intelligent power supply mode, intelligent Distribution of solar panel/mains/battery power shares AC and PV charge voltage adjustable, can meet different types battery charge requirement Adjustable Charge Current & Voltage, selectable Lead acid / Lithium battery Solar, Grid and Battery Energy complement each other, priority selectable RS232, BMS/RS485, Dry Contact Communication WiFi Plug or GPRS option for Mobile App, Automatic generator startion option 3KW have economical model, small capacity MPPT and PV input 6.2KW/11KW have parallel funciton, max can parallel 9 units Wide MPPT range 40--500VDC/120-500VDC, 60A/100A/150A for different modes Intelligent 3 stage AC battery charger, 60/80A/150A for different modes Selectable Utility, Solar or Battery priority, power Saver Modes Pure sine wave output, can suitable for different loads Protection for overload, over temperature,short-circuit, battery Low, battery reverse connection TECHNICAL SPECIFICATIONS
ITEM Model SUB-D-E3024 SUB-D-3624 SUB-D-6248 SUB-D-11048 SUB-D-6248GP SUB-D-11048GP
INPUT RATED POWER 3KW 3.6KW 6.2KW 11KW 6.2KW 11KW
Voltage 220/230/240VAC
Selectable Voltage Range 170-280VAC±3V (For Personal Computers)
90-280VAC ±3V(For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT Voltage 220/230/240VAC ± 5%(Bat Mode)
Surge Power 2 times Rated power for 5 seconds
Overload Protection 21s@105%~150% Load; 11s@150%~200% Load; 400ms@>200% Load
Efficiency,PV to INV. 97% (Peak)
Efficiency,Battery to INV. 94%(Peak)
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
Parallel Extension infeasible infeasible infeasible infeasible Max 9PCS Max 9PCS
Grid Connected Operation Output Voltage NO 220/230/240VAC
Grid Voltage Range NO 195-253VAC
Grid Frequency Range NO 49-51±1Hz or 59-61±1Hz
Output Current NO 26.9A 47.8A
Power Factor Range NO >0.99
Conversion Efficiency NO 98%
BATTERY & AC CHARGER Battery Voltage 24 VDC 48 VDC
Constant Charging Voltage(Adjustable) 28.2VDC 56.4VDC
Floating Charge Voltage(Adjustable) 27 VDC 54 VDC
Overcharge Protection 33 VDC 63 VDC
Charge Current (Max) 60A 80A 80A 150A 80A 150A
SOLAR CHARGER PV Array Power (Max) 3KW 4.2KW 6.2KW 2*5.5KW 6.2KW 2*5.5KW
MPPT Range 50 ~ 500 VDC 150 ~ 500 VDC
PV Work Range 300~400VDC
PV Array VOC (Max) 500 VDC
Max PV Input Current 18A 18A 18A 18A/18A 18A 18A/18A
Max PV Charge Current 60A 100A 100A 150A 100A 150A
Max Charge Current 100A, AC+Solar adjustable 120A, AC+Solar adjustable 150A, AC+Solar adjustable 120A, AC+Solar adjustable 150A, AC+Solar adjustable
Display LCD Input/Output V/HZ; Load %, VA/W; Overload; Bat % VDC; Bat Type; PV1/PV2 V/WH; Charge/Discharge Current; Setup; Fault Code and Warning; Working Mode
LED AC/INV: Green Light Solid on-Output is powered by mains; Flashing-Output is powered by solar
CHARGE: Green Light Solid on-Battery is fully charged; Flashing-Battery is charging
FAULT: Red Light Solid on- Inverter fault; Flashing- Inverter warming
Setup/Adjust parameter Solar power /utility power/Battery priority, united Charge Current , AC Charge Amp, AC input range, VAC HZ, Bat VDC back to utility power, BAT VDC back to Bat Mode, Charge Source select ,Alarm on off , overload bypass, Bulk/ Floating Charge VDC, Bat Low Cut VDC , equalization Charge VDC / mins / days,
Output Working Mode Utility Uower Priority default. Utility power priority, Solar and battery as backup when utility power not available
Solar Priority(SUB Mode) solar power priority, utility power supplement to load when solar power is not enough , utility not available, battery supplement to load. Working on daytime while No Bat
SBU priority Solar power priority, When Solar power is not enough,battery to supplement.when battery power is not enough , utility power to load. Working on daytime while No Bat
OPERATING ENVIRONMENT Humidity 20% to 95% Relative Humidity(Non-condensing)
Altitude No more than 1000m, lf 1000m<,Rate power will lower, MAX 4000m, Refer to lEC62040
Noise ≤50db
Operating Temperature -10°C - 50°C
Storage Temperature -15°C - 60°C
Communication interface N/A RS232; BMS/RS485; WIFI Plug; Dry Contact; Parallel port for 6.2KW/11KW
Product size L*W*H 495*312*146 570*500*148 495*312*146 570*500*148
Net Weight (kgs) Kg 9.13 10.52 10.79 18.99 10.79 18.99
Carton size L*W*H 565*385*195 708*570*241 565*385*195 708*570*241
Carton weight Kg 10.35 11.84 12.42 22.21 12.42 22.21
