Product Description

Diesel Engine Electric Motor Industrial High Pressure Horizontal Booster Centrifugal Water Pump High Lift Head Multi Stage Dewatering Multistage Pump

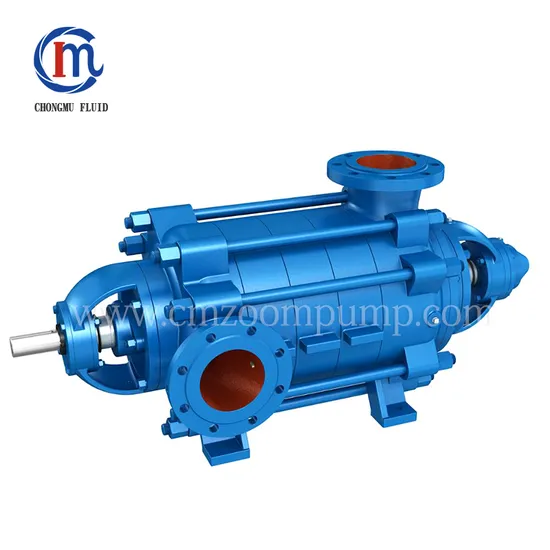

D-type horizontal multi-stage centrifugal pump is a single-suction multi-stage segmented centrifugal pump, which is used to transport clean water or other liquids with physical and chemical properties similar to water. The temperature of the liquid should not exceed 80 °C. It has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance, etc. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of the pump flow parts, the sealing form and increasing the cooling system.
D-type horizontal multi-stage pump is a multi-stage segmented type. Its suction port is located on the water inlet section, in a horizontal direction, and the discharge port is vertically upward on the water section.Its head can be increased or decreased according to the use needs.
The main parts of the D-type horizontal multistage pump are: water inlet section, middle section, water outlet section, impeller, guide wing baffle, water outlet section guide wing, shaft, sealing ring, balance ring, shaft sleeve, tail cover and bearing body.
According to different purposes, D series can be divided into:
D: Suitable for transporting clean water without solid particles or liquids with physical and chemical properties similar to clean water. The temperature of the transported medium is 0~+80ºC, the pump suction is horizontal, and the discharge is vertically upward.
DM: It is suitable for conveying liquids with a small amount of solid particles and similar physical and chemical properties to clean water. The temperature of the conveyed medium is 0~+80ºC, the pump suction is horizontal, and the discharge is vertically upward.
DG: It is suitable for conveying clear water without solid particles or objects with physical and chemical properties similar to clear water. The temperature of the conveyed medium is -20ºC~150ºC, and the suction and discharge of the pump are vertically upward.
DY: It is suitable for conveying petroleum products without solid particles or other liquids similar to water. The temperature of the conveyed medium is -20ºC~+400ºC, and the suction and discharge of the pump are vertically upward.
DF: Suitable for conveying corrosive liquids without solid particles, the temperature of the conveyed medium is -20ºC~+150ºC, and the suction and discharge of the pump are vertically upward.
All the above types of pumps can be selected with mechanical seals or soft packing seals according to user requirements, and the material of the flow-through parts can be cast iron, bronze, stainless steel or ordinary carbon steel.
Performance Parameters:

Flow:	3.7-1350m3/h
Head:	33-1800m
Power:	3-1600kw
Material:	Cast Iron,SS304,SS316,etc

Features:
1. Advanced hydraulic model, high efficiency and wide performance range.
2. The pump runs smoothly and has low noise.
3. The shaft seal adopts soft packing seal or mechanical seal, the seal is safe and reliable, the structure is simple, and the maintenance is convenient and quick.
4.The shaft is a fully sealed structure, which ensures no contact with the medium, no rust, and long service life.
Structure:
Company:
Shijiazhuang Chongmu Fluid Machine Co., Ltd is a modern pump company specializing in production, research and development, sales and service. We have been in the centrifugal pump industry for more than 20 years. We have a modern standard pump room and a processing workshop with a variety of advanced processing equipment. The whole process from casting to assembly is one-stop closed-loop production. The team of experienced production R&D engineers is professional and efficient. Choose us, professional team, professional equipment, trustworthy.
Chongmu Main products:
1.Slurry pumps
2.Gravel pumps
3.ZJQ submersible slurry pumps
4.Inline pumps
5.Multi-stage pumps
6.Split case pumps
7.Sewage pumps
8.Mixed flow pumps
9.Self priming pumps
10.Spare parts
Our Workshop:
FAQ:
1.What information do you need to offer a quotation?
Liquid:
Pump Capacity: m³/h or L/S
Pump Head: M
pH:
Specific of gravity:
Voltage: V
Frequency: Hz
2.Are you the manufacturer or trading company?
We are real manufacturer for centrifugal pumps,and we have been in this industry for more than 20 years.
3.Can we pay a visit to your factory?
Yes.We warmly welcome you to visit our factory.
4.What is the MOQ?
There is no MOQ.
1 set of pump,or 1 piece of spare part is ok.
5.Do you accept OEM orders?
Yes.Send us the drawings,then we can produce for you.
