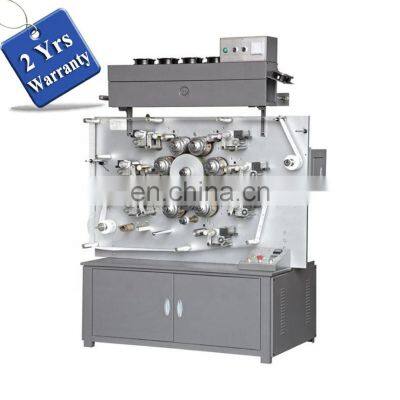

UGS1004 4 colors Automatic Wash care label rotary printing machine, auto webbing bardcode ribbon satin press printer

Product Description

Product Description
UGS1004 4 colors Automatic Wash care label rotary printing machine, auto webbing bardcode ribbon satin press printer
Videos
Video demonstration only for reference
Video 01: /watch?v=7ExnOg8NH_U
Video 02: /watch?v=zx3ufpY3-DM
Product Description
Usage:
The machine is suitable for printing variety of roll fabric materials like nylon ribbon, cotton ribbon, elastic ribbon, labels, strapping belts and satins etc
Features:
1. High printing registration and even ink distribution roller by roller
2. Automatic lubricating system ensuring a long well service life.
3. The main electric motor takes the advantage of frequency converter offering stable print speed and less power consumption.
4. The machine will automatically stop when the material runs out detected by photo sensor.
5. Printing length can be counted in automatically.
Parameters:

Model	UGS1002	UGS1004	UGS1006	UGS1007
Printing color	2/0, 1/1	4/0, 3/1	6/0, 5/1, 4/2	7/0, 6/1, 5/2
Roll Material Width	100mm	100mm	100mm	100mm
Print Area	95*398/mm	95*398/mm	95*398/mm	95*398/mm
Printing speed	0-60m/min	0-60m/min	0-60m/min	0-60m/min
Total power	0.75kw	0.81kw	1.5kw	1.5kw
Weight	550kg	850kg	960kg	1100kg
Dimension	1320*850*1480mm	1530*880*1560mm	1850*900*1680mm	1850*900*1750mm

Detailed Images

Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
Certifications
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Packaging & Shipping
Wooden Case Loading and Transport
