China Hotsale Vibration Wheat Maize Sesame Lentil Chickpea Beans Corn Sorghum Seed Cleaner Grain Cleaning Machine Price

Product Description

TQLZ100X150 High efficient Hotsale Vibration Wheat maize corn sorghum seed cleaner grain cleaning machine price Product Description

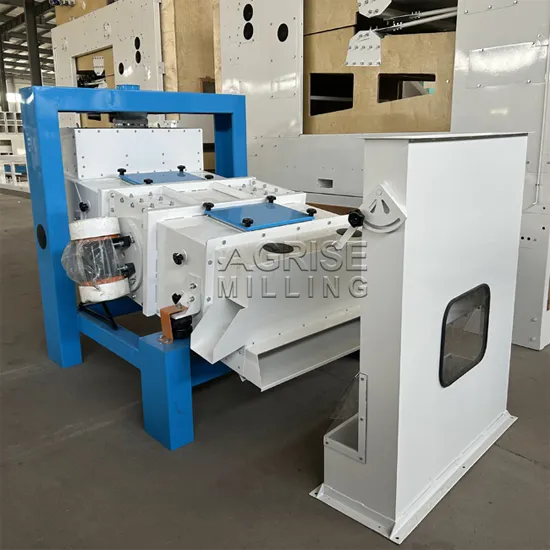

TQLZ Series Grains Vibration Sifter Cleaner Machine is applied for grain cleaning primarily in wheat, maize, rice mills or in grain storage facilities. The machine also serves successfully in flour mill,feed mills, seed cleaning plants and oil seeds cleaning plants. Using sieves, the cleaner removes coarse and fine impurities from the grain. It also grades a wide range of different materials according to size.
Feature of TQLZ Series Grains Vibration Cleaning Machine
*Reasonable structure, stable operation, low noise, highly efficient, energy saving;
*Fully sealed, no flying dust, secure and sanitary;
It is widely used in flour, oil, brewery, rice, feed, chemistry and food processing plants to clean and grade particle materials.

1. All the sheets are good quality cold steel from Shanghai Baoshan iron and steel plant, high strength and good toughness, precise, flat and beautiful.
2. All the sieves are equipped with rubber ball of more than 80% elasticity, 350RMB more expensive than common rubber ball. The sieve chest is over 2.5mm, holder of motor is 16mm, which will not lead to vibration of bracket and resonation of sieve chest.
3. The sieve plates are punched by CNC machine, precise, uniform and highly efficient. The sieve plates and trawl are flat with ashtree sieve frame, well painted.
4. Dip angle of the sieve cover is adjustable to control flow of the materials.

Product Parameters

Model	Screen Size	Rated Capacity		Screen Dip Angle		(°)		(mm)	Power	(r/min)	(m³/h)	KPa (kN/m²)	(kg)	(mm)
	(cm)	(t/h)		(°)					(kW)
		Pre- cleaning	Cleaning	Pre- cleaning	Cleaning	Pre- cleaning	Cleaning
TQLZ40×80	40×80	3	2	6	6	25	20	4~5	2×0.12	1140	1320	35	190	1270×700×1600
TQLZ60×100	60×100	12	4	6	6	25	20	5~5.5	2×0.25	960	1920	50	360	1640×1210×1322
TQLZ100×100	100×100	20	7	6	6	25	20	5~5.5	2×0.25	960	3000	50	420	1640×1550×1382
TQLZ100×150	100×150	30	11	9	6	25	20	5~5.5	2×0.37	960	4800	50	520	2170×1550×1530
TQLZ100×200	100×200	40	14	12	6	25	20	5~5.5	2×0.37	960	5400	50	540	2640×1550×1557
TQLZ150×150	150×150	45	16	9	6	25	20	5~5.5	2×0.75	960	6000	50	630	2170×2180×1600
TQLZ150×200	150×200	60	22	12	6	25	20	5~5.5	2×0.75	960	8100	50	650	2660×2180×1636
TQLZ150×250	180×200	70	26	12	6	25	20	5~5.5	2×1.1	960	9600	50	1000	2700×2480×1873
TQLZ150×270	150×270	100	30	15	10	35	30	4~5	2×1.5	960	8100	50	1200	2660×2180×1636
TQLZ200×200	180×270	120	35	15	10	35	30	4~5	2×1.5	960	9600	50	1500	2660×2480×1636
