OEM Factory 90W Isolated 802.3af/at/Bt Poe++ Splitter with 12V/16V/24V/48V Selectable
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
PoE-90W-SWD
Transmission Rate
100Mbps
Ports
≦8
Standard
802.3af/at/Bt
Power Output
90W
Transport Package
Carton Box
Specification
15*12*5cm
Trademark
OEM
Origin
China
HS Code
8504401400
Production Capacity
10000PCS/Month
Product Description

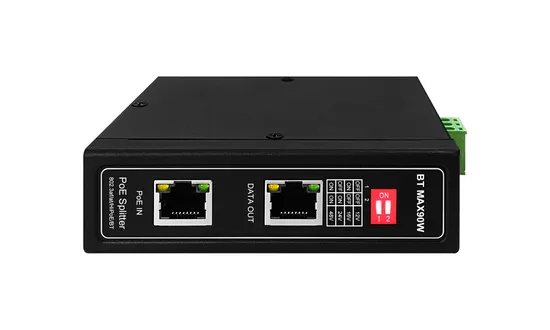

90W isolated 802.3af/at/bt PoE++ splitter with 12V/16V/24V/48V selectableModel: PSE90WS Series GIGABIT POE++ SPLITTER - Split 90W IEEE802.3bt PoE++ to Gigabit/2.5Gbps(oem) Data and dual DC power outputs. DC OUTPUTS - 1 x DC 12/16/24/48V switchable output(terminal blocks or DC jack), max 72W in total. INTELLIGENT LED INDICATOR - Shows 30W/60W/90W power input and 12V/16V/24V/48V DC output. Help to efficiently control how much power is input and output. RUGGED DESIGN - For harsh environment with wide temperature range between -40ºC~75ºC, 6KV ESD protection. EASY INSTALLATION - Wall mount and DIN rail mount (accessories included). Detailed Photos
Product Parameters
| Product Model | PoE-90W-S | PoE-90W-SWD |
| PoE Input | IEEE 802.3af/at/bt | IEEE 802.3af/at/bt |
| PoE Pin Assignment | +(1,2,4,5)pin -(3,6,78)pin | +(1,2,4,5)pin -(3,6,78)pin |
| PoE Budget | 90W | 90W |
| DC output | DC 12V /7.5A | DC 12/16/24/48V switchable |
| Ethernet Port | 1x 10/100/1G/2.5G Data out | 1x 10/100/1G/2.5G Data out |
| PoE Port | 1x 10/100/1G/2.5G PoE input | 1x 10/100/1G/2.5G PoE in |
| DC port | 1x DC output (3P) | 1x DC output (3P) |
| Surge Protection | 3KV/1.5KV(isolation) | 3KV/1.5KV(isolation) |
| IP rating | IP40 | IP40 |
| Dimensions (length,width,height | 101*100*30mm | 101*100*30mm |
| Operating Temperature | -40ºC~75ºC | -40ºC~75ºC |
| Installation | DIN-Rail/ Wall-Mount | DIN-Rail/ Wall-Mount |
