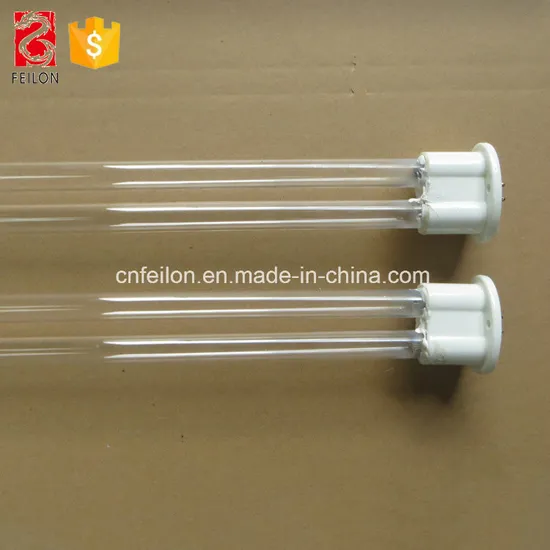

U UVC Germicidal Lamp for Killing Bacterium UV Light Pipe

U UVC Germicidal Lamp for Killing Bacterium UV Light Pipe

US$1.85-8.65 100 Pieces (MOQ)

Basic Info.

Model NO.
U Shape uv lamp
Wavelength
UV-C
Specification
U Type, U Shape uv lamp
Material
Quartz Glass
Type
U Shape UV Lamp
Tube Material
Clear Quartz Glass
Color
Transparent
Lamp Base
G10q/2g11
Lamp Length
810-1554mm
Diameter
15mm
Power
41-155W
Feature
Sterilization
Lamp Voltage
220V
Lamp Lifttime
8000hours
Transport Package
Noraml Packing or as Client′s Requests
Trademark
Neutral or OEM
Origin
Heifei, Cn
HS Code
8539490000
Production Capacity
500000/Month

Product Description

Description
Ultraviolet sterilization is the irradiation of ultraviolet rays, which destroys and changes the DNA (deoxyribonucleic acid) structure of microorganisms, so that the bacteria immediately die or cannot reproduce the offspring and achieve the purpose of sterilization. The true bactericidal effect is UVC ultraviolet light, because the C-band ultraviolet ray is easily absorbed by the DNA of the living body, and the ultraviolet ray of about 253.7 nm is optimal.
UV germicidal lamps with different bases, diameters, and lengths are available, which offer excellent efficiency. We supply two types of UV lamps, emitting UV-C wavelength at 253.7nm, ozone-free; while emitting UV-C wavelength both at 253.7nm and 185nm, ozone-generating.
Specification


Lamp Type
Tube Diameter Lamp Length Lamp Power Lamp Current Lamp Voltage 254nm UV output@1M Average Life
mm mm W mA V μw/cm² Hours
ZW41D15W-Z843 15 843 41 425 98 136 8000
ZW55D15W-Z1149 15 1149 55 425 135 174 8000
ZW75D15W-Z1554 15 1554 75 425 179 223 8000
ZW87D15W-Z843 15 843 87 800 110 260 8000
ZW95D15W-Z893 15 893 95 800 115 270 8000
ZW155D15W-Z1554 15 1554 155 800 195 380 8000
ZW150D15W-Z810 15 810 150 800 220 360 8000

Remark: No o-ozone, ozone and high ozone uv lamp;
G10q/2G11 Lampholder;
Can be customized the power and length based on customer requirements;
Application
Air purifiers, disinfection cabinets, microwave ovens and air conditioners etc.
Sterilization of air and objects on schools, hotels, restaurants, homes, and offices etc.
