Fbe Coating Machinery Steel Pipe Internal External PU 3lpe 5lpp Pipeline Coated

Product Description

Steel Pipe Internal External FBE Coating Machinery 3LPE 2LPE Pipe

Product Description
It is an efficient method to make the epoxy powder of inside and outside the steel pipe for anti-corrosion. The anti corrosive steel pipe has many advantages, such as strong corrosion resistance of the coating, which can resist the erosion of a variety of chemical mediator; The coating surface is smooth and the friction resistance is small. This steel pipe of anti corrosion is widely used in petroleum, natural gas transmission pipelines, water supply and drainage pipelines and many other fields.
Application:
Steel pipe internal&external FBE powder coating process, with the steel pipe internal wall blasting and external wall blasting , FBE epoxy powder coating applied to the water supply for civil use.
Internal & External FBE Powder coating Structure Diagram
The epoxy powder is a kind of thermosetting nontoxic coating, forming the high molecular weight cross-linking structure coating after solidifying, featuring good chemical anticorrosion and higher mechanical properties. The function of epoxy powder bottom layer is to form continuous coating, providing excellent adhension by agglutinate and solidifying the steel tube surface with good chemical resistance and cathodic disbanding resistance. The function of polymer adhesive is to agglutinate the epoxy powder before gelation, and to agglutinate the polyethylene top layer, which unites all three layers together.
Main equipment:

Item	Process Flow
1	Upload pipes
2	pipes sprial conveyor
3	external blasting
4	internal blasting
5	Rust removal
6	intermediate frequency heating
7	FBE powder coating
8	Powder recycling system
9	load down pipe rack

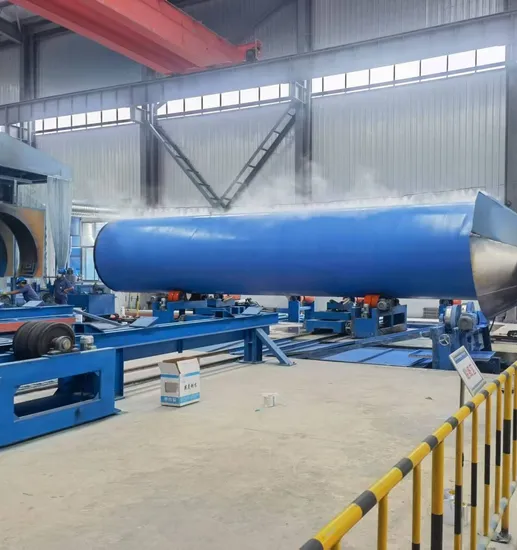

Detailed Photos
We also can make External 3LPE internal FEB powder coating Line click for detail
Our Advantages
-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good anti-corrosion quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
FAQ
Question & Answer:
Q1. What is Size of Pipe Dia. your equipment can produce ?
A: We can produce four main Model:
Diameter of steel Pipe:
48-219mm.
219-1220 - mm
325-1600 - mm
508-2400 - mm
1000-3200mm
Q2. What is Descaling grade?
A:SA2.5?
Q3. What is your anticorrosion coating standard?
A: It can meet SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 , DIN 30678 and coating specification requirements from American Corrosion Association, and DNV . The product pipe fully complies with SY/T0315-2005 ,CNPC38-2002 "Technical specifications for double-layer fusion-bonded epoxy powder coating on buried steel pipe and Canada, American Corrosion Association standards.
Q4. What is Delivery Time
A: 2-3monthes after deposit.
Q5. Production output:
A: It is different output capability as different pipe diameter, the Max. is 3 to 8 km/day, and annual processing capacity is 2 million square meters (Φ508 mm).
Q6. Coating thickness:
A: 80~800um
Q7. Which country did you sell your 3PE equipment?
A. We have produced nearly 50sets 3PE processing line at home and abroad. Such as Russia, Iran, UAE, Iran, India, Belarus, Kazakhstan and so on.
Q8. After-sales service:
A: Warranty period:
Before delivery all the equipment must be trial operated to confirm the quantity perfectly.
The warranty period is 12 months from the date of pick-up for mechanical part , and 6 months for the electrical part. The seller provides free technical services and provides training and guidance to buyer operators. Company Profile
Qingdao Huashida Machinery Co., Ltd is one of the top manufacturers of plastic extrusion machines in China, specialized in dealing with Steel pipe in terms of anticorrosion and insulation technology, R&D of the coating technique, design and manufacture of the equipment for coating, products and materials, researching and development of plastic extrusion equipments, especially of Vacuum Calibrating method PE insulation jacket pipe extrusion line, and PE hollow wall spiral pipe production line, PE PP sheet extrusion line, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.
Up to now, We have successfully entered the oversea markets of Russia, Iran, UAE, India, Belarus, Kazakhstan and son on. Our pipeline production line is nearly 50sets at home and abroad.
HUASHIDA Factory located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have obtained more than 10patents and many industry certifications at home and abroad. HUASHIDA company has high qualified and experienced teams for reaching& designing, manufacturing and site operation.
We have reliable products of different models because of our powerful making capacity. We can satisfy our customer's special need because of our outstanding R&D and design capacity. We can offer our user with timely and convenient techniqual support because of our perfect after-sales service.
