Square Pipe Making Machine Air Duct Manufacture U Shape Auto Line 5

Product Description

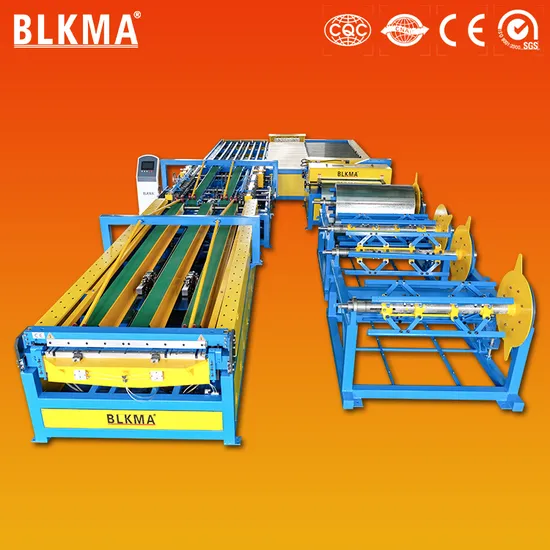

square pipe making machine Air Duct Manufacture U Shape Auto Line 5

YOUTUBE VIDEO

https://cnblkma.en.made-in-china.com

Function:
It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF / angle steel / C-shaped flange and folding.
Main Technical Parameters:

Model	Sheeting thickness (mm)	Max width (mm)	Max working speed (m/min)	coiler max weight (T)	Dimensions L*W*H(mm)	Power (KW)	Weight (T)
ADL-5U -1300	0.5-1.2	1300	15	7	12000*5500*1500	30	13
ADL-5U -1500	0.5-1.2	1500	15	7	12000*6300*1500	30	14

Main import Configuration:
1. Beijing Huade + hydraulic system from Taiwan
2. Japan Omron encoder
3. Taiwan Hiwin linear guideways
4. Schneider electrical system
Basic Configuration:
1. Two electric coil cradles, 4 material trays (5-7t each roll)
2. One rack
3. One host (line 2 host)
4. Two stainless steel roller convey platforms
5. One fixed joint locking machine
6. One duplex TDF flange forming machine
7. One duplex angle steel flange forming machine
8. One servo feeding platform
9. One hydraulic folding machine
10. One set of computer controlling system
FAQ
1. Are you factory or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can arrange our engineers to your country and you can also send your engineers to our factory
for learning operation. Besides, there are detailed installation and operating instructions
attached, it is very simple. We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be accepted after we both
sides' discussion and agreement.
4. OEM is available?
Yes.
