Sign CNC Excellent Quality A2-1325-PRO CNC Router with Atc Spindle and AC Servo Motor for Wood/MDF Carving and Cutting

Sign CNC Excellent Quality A2-1325-PRO CNC Router with Atc Spindle and AC Servo Motor for Wood/MDF Carving and Cutting

US$4,999.00
1-2 Sets
US$4,200.00
3-4 Sets
US$3,800.00
5-9 Sets
US$3,500.00
10+ Sets

Basic Info.

Model NO.
A2-1325-Pro/A2-2030-Pro
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Product Name
CNC Router
Modle
A2-1325-PRO
Working Table
Aluminum T-Slot Table with PVC
Working Area
1300*2500mm
Z Axis Height
300mm
Spindle
9kw Air Cooling Spindle
Spindle Speed
0-24000rpm
Inventer
11 Kw Folinn Inventer
Motor
Servo Motor
Reducer
750W*3
Control System
DSP B11
Guide Rail
25mm Square Guide Rail
Color
Red and White
Software
Artcam with Post Processor
Optional Part
Dust Collector
Transport Package
Wooden Case
Specification
1300*2500mm
Trademark
SIGN
Origin
Jinan City, Shandong Province, China
HS Code
8465990000
Production Capacity
50 Set/Month

Product Description

Product Description

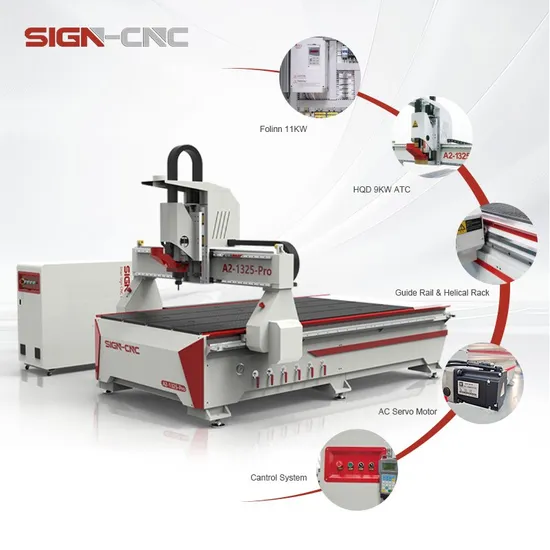

SIGN CNC excellent quality A2-1325-Pro CNC Router with atc spindle and AC servo motor for wood/mdf carving and cutting
Detailed Photos

* 25mm square guide rails * DSP control system * Heavy duty machine bed and large steel gantry, stable and high precision * 9kw air cooling spindle *Aluminum profile T-slot table with PVC protection * Y-axis dual servo motor drive, provide a strong impetus to ensure stable work * Perfect oil lubrication system makes maintenance much easier * Tool sensor to adjust the distance from materials to cutter automatically. * Breakpoint memory, can continue to work after power off & breaking knife. * And electric limit switch on all axis, make sure machine running well. Product Parameters
PRODUCT SPECIFICATIONS
Item
Data
Model
A2-1325-Pro
X, Y Working size
1300*2500mm
Z feed Height
300mm
Table Surface
Aluminum profile T-slot table with PVC protection
X, Y Structure
Rack and Pinion, 25mm Linear Square Guide Rail
Z Structure
25mm Linear Square Guide Rail and Ball Screw
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
35000mm/min
Max. Working Speed
20000mm/min
Spindle Power
HQD ATC 9kw air cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
Servo motor and driver with reducer
Working Voltage
AC380V 50/60Hz
Command Language
G code
Control System
DSP A11 /B11
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%
Optional Parts
Rotary
Warranty
Two years

Application and sample
Furniture industry: Solid wood furniture, solid wood door, wooden cabinet door, Paint-free door, composite gate cabinet, Board type furniture, office furniture, table and chair, door and window and Screen engraving.
Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment
Musical instrument: 3D surface engraving and shape cutting for violin
Artwork line: Photo frame, jewelry box
Electrical industry: PVB circuit board, insulation material, LED display screen
Packaging & Shipping
Package
Certifications

Company Profile

40%-50% clients also like products as following
Linear ATC cnc router ATC 4 axis cnc router Automatic tool change machine, tools 8-12 pc according your demand. ATC type and spindle rotate 180 degree,
carving for side hols like Keyhole, hinge hole and so on.
FAQ
Q1:What about your after-sales service A1: Two years warranty for machine and 24 hours technical support by call, email, skype, whatsapp, wechat and so on. If you have any question about machine and use, can contact with us, we will give you a solution or send to you video for how to do.
