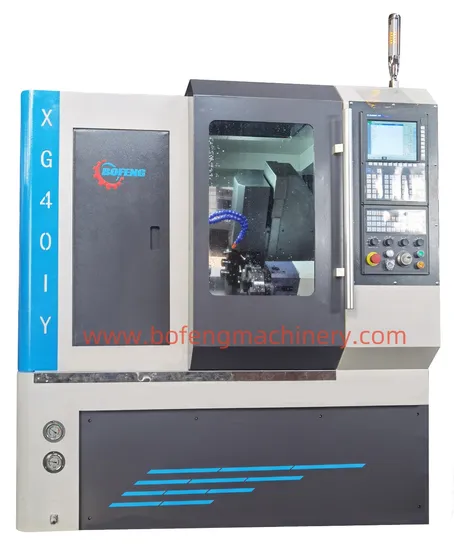

Xg-40 Slant Bed CNC Turning Center CNC Lathe Machine with Y Axis
Basic Info.
Model NO.
XG-40
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max.Swing Diameter
430mm
Max.Cutting Length
300mm
Spindle Nose
A2-5
Spindle Taper
1:20
Spindle Bore
52mm
Max.Spindle Speed
4500rpm
Spindle Motor Power
3.7/5.5kw
Hydraulic Chuck
6"
X Travel
640mm
Z Travel
320mm
Tool Shank
20*20mm
Hydraulic Pump Motor
1.5kw
Coolant Pump
180W
Machine Dimension
1850*1400*1700
Machine Weight
1850kg
Transport Package
Exporting Wooden Box
Trademark
Lingfeng
Origin
China
HS Code
8458110090
Production Capacity
1000PCS/Year
Product Description
Main Feature:Compact bed with 30 degree, without tail stock.
Adopt Taiwan HIWIN linear rail, Japanese THK ball screw to keep accuracy.
Both Hydraulic collet and Hydraulic chuck are available.
Mainly for all kinds of small spare parts, widely use in sanitary, valve, electrical, appliance, instrument, automobile, motorcycle industry.
All kinds of CNC system, GSK980TDi, GSK988TA,SYNTEC, Fanuc 0i-TF, Siemens 808D, 828D as optional.
All kinds of tool changer as options: Gang tool 8 station servo turret Power tools with or without Y axis Fly cutter for Square, hexagonal, octagonal. Specification:
| Model | Unit | XG-40 | Note | |
| Capacity | Max. swing diameter on bed | mm | Φ430 | |
| Max. swing diameter on slider | mm | Φ160 / Φ230 | ||
| Max. working length | mm | 300 | ||
| Spindle | Spindle nose | ASA | A2-5 | |
| Spindle taper | mt | 1:20 | ||
| Spindle bore diameter | mm | Φ52 | Can be Φ56 | |
| Bar through hole | mm | Φ40 | Can be Φ45 | |
| Max. spindle speed | rpm | 4500 | ||
| Spindle motor | kw | 3.7/5.5 | Optional: 5.5/7.5 | |
| Hydraulic chuck | inch | 6" | Optional: Hydraulic collect | |
| X/Z axis | X/Z travel | mm | 640 / 320 | |
| X/Z rapid moving speed | m/min | 20 / 25 | ||
| Tools | Tool changer | Gang tool | Optional: electric turret Or Hydraulic servo turret ( 8 station) | |
| Tool shank | mm | 20*20 | ||
| Others | Tailstock | N/A | ||
| Hydraulic pump motor | Kw | 1.5 | ||
| Coolant pump | W | 180 | ||
| Others | Slant bed degree | / | 30degree | |
| Chip conveyor | / | optional | ||
| Machine weight | kg | 1850 | ||
| Dimension (L*W*H) | mm | 1850*1400*1700 | ||
