CNC External Cyclone /Wirling Milling Machine Lathe Machine Special Customization Milling Machine

Product Description

SUMORE
Twenty years of experience in industry and trade integration. The fastest delivery cycle in the industry.
100% response rate of customer service online at any time.<view more>>>> Product Description

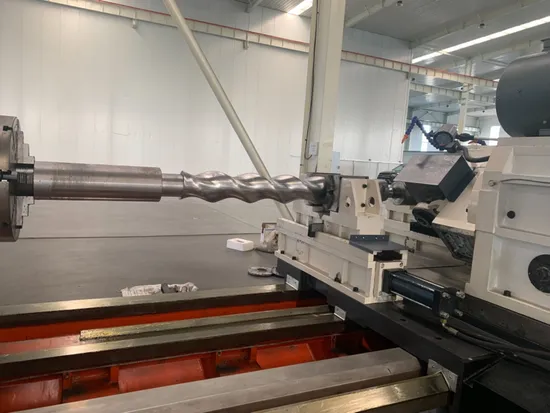

2022 hot sales Replaceable tool shaft XK300×1000 CNC control external cyclone milling machine
* MACH & GSK & SIEMENS & FANUC Programming Systems
* Professional Electronic System
* Upgraded PC-based Controller
* High Rigidity Guide Way & Bed Construction
* Powerful Main Motor & Reliable Servo Motor
* High Precision for All Axes Movements
* Automatic Tool Charger & Multiple Tool Positions
* Cabinet Door Opening System & Considerable Safety Signs
PRODUCT SPECIFICATIONS

Item	NXK220-3000	XK300-3000	XK300×3000-E-I
Max machining length	500mm	750mm	1750mm
Spindle RPM	0-1500 rpm	0-1200 rpm	0-1200 rpm
Chuck size	200mm(8")	250mm(10")	250mm(10")
	(can be optional)	(can be optional)	(can be optional)
Indexing accuracy	0.01°	0.01°	0.01°
Positioning accuracy	0.015mm	0.015mm	0.015mm
Repeated accuracy	0.01mm	0.01mm	0.01mm
Whirling head power	4-3KW(110W2)	4-4KW(150W2)
Whirling speed	1000-2000rpm	500-1000rpm
Helical angle range	±10°	±15°
Total power	15kw	16kw	16kw
Machine weight	2600kg	3000kg	3200kg
Machine size	2300x1700x2000	2700x1800x2000	3200x1800x2000

NXK220-3000	NXK250-3000	NXK300-3000	NXK350-3000
1250mm	1750mm	2700mm	3700mm
0-800 rpm	0-800 rpm	0-800 rpm	0-800 rpm
320mm(12")	320mm(12")	320mm(12")	320mm(12")
(can be optional)	(can be optional)	(can be optional)	(can be optional)
o.o1°	0.01°	0.01°	0.01°
0.015mm	0.015mm	0.015mm	0.015mm
0.01mm	0.01mm	0.01mm	0.01mm
4-5.5KW(175W2)	4-7.5KW(245W2)
400-700rpm	300-500rpm
±15°		±20°
20kw	22kw	25kw	26kw
3800kg	4400kg	5000kg	5000kg
3700x2000x2200	4400x2000x2200	5200x2000x2200	5200x2000x2200
Remarks:The machine will be customzied as per customers' requirements

PRODUCT CONFIGURATION

A2-6 4500 rpm spindle

GSK Control system

8-station servo hydraulic tool

Hydraulic chuck

Ball screw and line track

A convex and a flat tailstock design

GSK control operating system A2-6 4500 rpm spindle 8-station servo hydraulic tool magazine Automatic tool change in 2 seconds Ball screw and line track
A convex and a flat tailstock design Other Optional configuration

SYNTEC 22MA

FANUC

SIEMENS

HNC808DM

Hot Sales Recommend Products

No.	Product Name	Specifiations	Stock Qty	Stock price
1	Kangnuo Nxk350 Milling CNC Machine CNC Thread Whirling Machine	3000-8000mm	2	<view more>>>
2	Kangnuo Crm-260 CNC Shaping Grinding Machine	2000-3000mm	1	<view more>>>
3	Kangnuo Lgm140-2000 5 Axis CNC Spiral Rotor Grinder CNC Grinding Machine	1500-5000mm	3	<view more>>>
4	Kangnuo Lgx320-2000 CNC Spiral Rotor 5 Axis Linkage Milling Machine	2000-6000mm	2	<view more>>>
5	Kangnuo CNC Machine Design 3 Axis Screw Milling Machine	1000-10000mm	5	<view more>>>
6	Kangnuo CNC Special Roots Pump Rotor Milling Machine	3000-6000mm	6	<view more>>>
7	Kangnuo Lgxm350 CNC Spline Milling Grinding Machine	1000-4000mm	2	<view more>>>
8	Kangnuo Internal Outernal Thread Milling Cutting Processing Machine	1000-9000mm	10	<view more>>>
9	2022 5 Axis Kangnuo Ground Marble Plane CNC Camshaft Milling Grinding Machine	1000-7000mm	5	<view more>>>
10	2022 Kangnuo Stock Turning Milling Compressor Rotors 4 Axis T-Shape Bed CNC Milling Machine	1000-10000mm	20	<view more>>>
11	2022 Kangnuo Stock 5000mm Screw Milling Machine for Extrusion Industry	2000-10000mm	14	<view more>>>
12	2022 Kangnuo Stock 2000mm screw processing 100 diameter small screw milling machine for Precision laboratory granulator	1000-4000mm	3	<view more>>>
13	2022 Kangnuo Stock CNC Lxck350-4000 1000mm Bed Width Four Rails Screw Milling Machine Screw Milling Machine	2000-8000mm	7	<view more>>>

Assembly Process and Quality Control

Each contact surface of the workpiece is manually scraped to ensure the precision of the machine.	Line guide rail installation, using code meter accuracy test.	Installation details of inclined track
Screw installation process	Screw installation process	Electrical system configuration box

lectrical system configuration box


Company Profile and Picture
Cangzhou Kangnuo CNC Machine Tool Manufacturing Co., Ltd. is located in Botou CNC machine tool Industrial Park, Hebei Province, the company is located only three kilometers away from the Nanpi exit of Beijing-Shanghai high-way, the traffic is very convenient. The company set r & D, design, production, sales, service in one, not only has a high-quality staff, but also has a strong product research and development team, after r & D improvement, our company now has a series of special CNC machine tools for processing spiral workpiece.Machine stable performance, high technology content, and a number of well-known enterprises to maintain long-term cooperation.
CERTIFICATIONS
CE , SGS, ****** High-quality Supplier and Made-In-China Gold Supplier.
FAQ
1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .

2:What's your main products of your company?
A: We specialized in machines ,such as CNC screw milling machine ,vacuum pump screw special CNC spiral rotor milling machine,Turning Milling Machines .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Botou CNC machine tool Industrial Park, Hebei Province China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
