New Design Lever Hoist Chain Hoist 3ton Chain Block Lever Block Manual Chain Block Chain Pulley Block Hoist Lever Hoist Lifting Equipment Chain Block Hoist
Basic Info.
Model NO.
HY-VL
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform
Type
Hydraulic Hoist
Sling Type
Chain
Lift Speed
>8m/min
Maximum Lifting Height
20m
Chain Falls
1
Certification
CE, ISO9001:2000
Condition
New
Color
Orange
Capacity Range
0.5ton-20ton
Model No
Hy-Vl
Transport Package
Carton
Specification
HY-VL
Trademark
HY
Origin
China
HS Code
84251900
Production Capacity
2000PCS/Month
Packaging & Delivery
Package Size
21.00cm * 17.00cm * 15.00cm
Package Gross Weight
25.000kg
Product Description
Hoist Lever Chain Block Hoist 0.75ton High Quality Manual Lifting Chain Hoist Lever Block Product Description

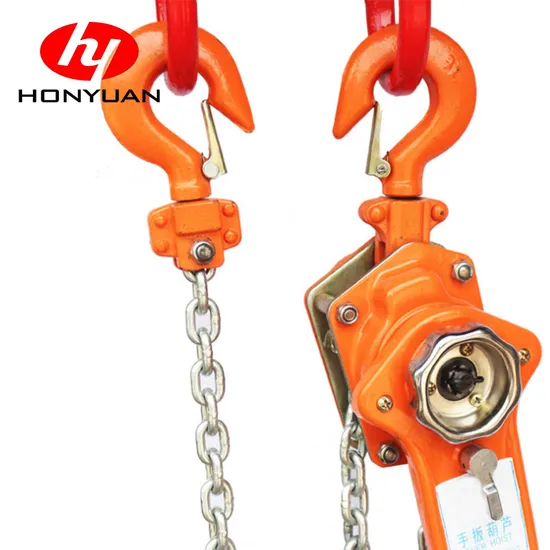

Detailed Photos
Product Parameters
| HSHZ | |||||||||
| Model | HSHZ | ||||||||
| Capacity | T | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 | |
| Standard lift | M | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test | T | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 11.25 | |
| Effort required to lift max.load | N | 140 | 140 | 240 | 240 | 320 | 340 | 360 | |
| No.of FALLS of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 3 | ||
| Load chain dia.(mm) | mm | 6 | 6 | 8 | 8 | 10 | 10 | 10 | |
| Dimensions | A | mm | 148 | 148 | 176 | 176 | 195 | 195 | 195 |
| B | mm | 88 | 88 | 102 | 102 | 9 | 109 | 109 | |
| C | mm | 135 | 135 | 155 | 155 | 211 | 254 | 319 | |
| D | mm | 32 | 32 | 36 | 36 | 46 | 46 | 57 | |
| L | mm | 290 | 290 | 415 | 415 | 415 | 415 | 415 | |
| H | mm | 320 | 320 | 380 | 380 | 480 | 600 | 700 | |
| Net weight(kg) | kg | 7 | 7.5 | 11 | 11.5 | 19 | 32 | 47 | |
| Packing(LxWxH) | mm | 370x140x170 | 370x140x170 | 520x140x180 | 520x140x180 | 550x160x210 | 550x160x210 | 620x485x260 | |
Certifications
Packaging & Shipping
Company Profile
Exhibition
FAQ1.How about after sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?
Before packing hoist, our workers will send hoists to inspection center well checked.And we take detailed pictures for each hoist before packing.You can offer our serial No.And then know the detailed products.
3.If it is spare parts?
We are manufacturing 60% spare parts in our factory to control high quality, and the other 40% spare parts supplier are from our long term supplier.Before stocking in warehouse, we have strict inspection for each parts.
4.If it is warranty?
We can provide 1 years warranty for electric parts, 2 years for mechanical parts.
