6ton 7ton Bucket Excavator with Magnetic and Electric Sucker Digger
| US$28,000.00-33,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JG75S-9 sucker
Type
Wheel Excavator
Usage
Special Excavator, Mining Excavator, GM Excavator
Bucket
Electromagnet Chuck
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
Electromagnet Chuck
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Boom Length
3300mm
Arm Length
1850mm
Transport Package
Nude Packing
Specification
5800*2100*2850mm
Trademark
JingGong
Origin
China
HS Code
8429521100
Production Capacity
3000sets/Year
Product Description
QUANZHOU JINGLI ENGINEERING MACHINERY CO. LTD.
jg-excavator.en.made-in-china.com
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.

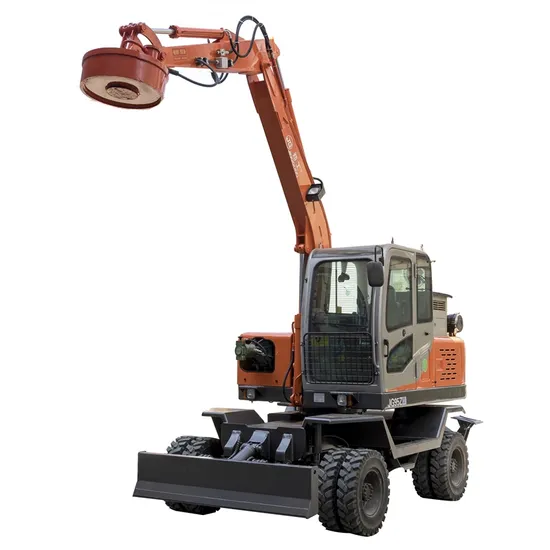

2020 Bucket excavator with magnetic and electric sucker
The magnetic power and electric sucker will generate magnetic force when it is energized, which directly attracts the workpiece.This sucker mainly generates a magnetic field through a power source. With a magnetic field, it can sense, position, and drive. When energized, its magnetic field will expand. The action changes the magnetic field, and the direction of movement is recognized to generate electromagnetic thrust.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Diameter of eletric sucker | 800mm | |||||||||
| Maximum suction weight | 500kg | |||||||||
| Maximum Digging Reach | 6240mm | |||||||||
| Maximum Digging Depth | 3200mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 6970mm | |||||||||
| Maximum Dumping Height | 4950mm | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 5800*2100*2850mm | ||||||||
| Wheel base | 2400mm | |||||||||
| Track(Front/rear) | 1850mm/1750mm | |||||||||
| Ground clearance of counterweight | 1160mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7000kg | |||||||||
| Engine model | YUCHAI 4FA65 | |||||||||
| Rated Power | 48KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 120L/min | |||||||||
| Metering gear pump | 2*28ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Volume Of Bucket | 0.2-0.3m3 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.
