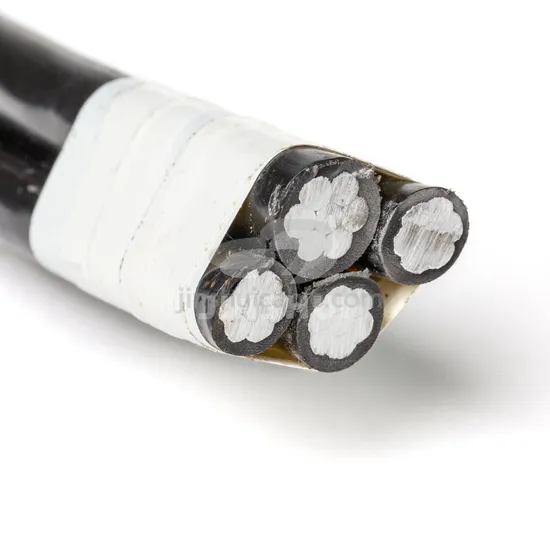

16mm 25mm 35mm XLPE Cable Nigeria ABC Power Aluminium Cable

Product Description

Product Description

Place of Origin:	Henan zhengzhou	Brand Name:	JInshui
Insulation Material:	XLPE/PVC/XLPE	Samples	For Free
Type:	Low and Medium Voltage	Conductor Material	Aluminum
Size:	See specification sheet for details	Rated Voltage:	0.6-35KV
Sheath:	No	Service	OEM,ODM
Colors:	Black	Certification	CCC,ISO, UL, CE,
Standard:	ASTM B; ASTM B193; UL 44; UL 854; BS 7870; IEC 60502

Low voltage aerial bundled cable, designed for overhead power lines and room entrance wires with a rated AC pressure of 1kv and below. The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting.It has less installation, maintenance, and operating costs, which can achieve greater economic loss and provide higher security and reliability.To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting.
Specification Triplex Service Drop-Aluminum Conductor

Code	Phase Conductor				Bare Neutral Messenger			Weight Per		Ampacity (Amps)
Name								1000 ft(lbs)
	Size		Stranding	Insulation	Size	Stranding	Breaking	XLP	POLY	XLP	POLY
	AWG			thickness	AWG		strength
				(MLS)			(lbs)
6201 ALLOY NEUTRAL-MESSENGER
Minex		6	solid	45	6	7	1,110	106.6	102.9	85	70
Hippa		6	7/w	45	6	7	1,110	113.2	105.7	85	70
Prawn		4	solid	45	4	7	1,760	158.4	154.1	115	90
Barnacles		4	7/w	45	4	7	1,760	168.3	158.2	115	90
Shrimp		2	7/w	45	2	7	2,800	253.7	239.7	150	120
Gammarus		1/0	7/w	60	1/0	7	4,460	411.7	386	205	160
Leda		1/0	19/w	60	1/0	7	4,460	402.7	386	205	160
Dungenese		2/0	7/w	60	2/0	7	5,390	506.8	476.3	235	185
Cyclops		2/0	19/w	60	2/0	7	5,390	495.3	476.3	235	185
Flustra		3/0	19/w	60	3/0	7	6,790	611.4	589.1	275	215
Lepas		4/0	19/w	60	4/0	7	8,560	757.1	730.5	315	245
6201 ALLOY REDUCED NEUTRAL-MESSENGER
Artemia		4	solid	45	6	7	1,110	141.4	137.1	115	90
Crab		4	7/w	45	6	7	1,110	151.3	141.2	115	90
Solaster		2	7/w	45	4	7	1,760	226.6	212.6	150	120
Sandcrab		1/0	7/w	60	2	7	2,800	368.8	343.1	205	160
Echinus		1/0	19/w	60	2	7	2,800	358.8	343.1	205	160
Crayfish		2/0	7/w	60	1	7	3,530	452.6	422.5	235	185
Sipho		2/0	19/w	60	1	7	3,530	441	422.5	235	185
Fulgar		3/0	19/w	60	1/0	7	4,460	543.4	521.1	275	215
Arca		4/0	19/w	60	2/0	7	5,390	671.2	644.6	315	245
AAC NEUTRAL-MESSENGER
Haiotis		6	solid	45	6	7	563	102.5	98.8	85	70
Patella		6	7/w	45	6	7	563	109.1	101.6	85	70
Fusus		4	solid	45	4	7	881	151.9	147.6	115	90
Oyster		4	7/w	45	4	7	881	161.8	151.7	115	90
Clam		2	7/w	45	2	7	1,350	243.2	229.2	150	120
Murex		1/0	7/w	60	1/0	7	1,990	395.1	369.4	205	160
Purpura		1/0	19/w	60	1/0	7	1,990	386.1	369.4	205	160
Nassa		2/0	7/w	60	2/0	7	2,510	485.8	455.3	235	185
Melita		3/0	19/w	60	3/0	19	3,310	585.2	562.9	275	215
Portunus		4/0	19/w	60	4/0	19	4,020	723.9	697.3	315	245
Nannynose		336.4	19/w	80	336	19	6,146	1160	1118	420	325
WITH FULL SIZE ACSR MESSENGER
Paludina		6	solid	45	6	'6/1	1,190	114	113	85	70
Voluta		6	7/w	45	6	'6/1	1,190	120	113	85	70
Whelk		4	solid	45	4	'6/1	1,860	169	165	115	90
Periwinkle		4	7/w	45	4	'6/1	1,860	176	172	115	90
Conch		2	7/w	45	2	'6/1	2,850	267	261	150	120
Neritina		1/0	7/w	60	1/0	'6/1	4,380	530	419	205	160
Cenia		1/0	19/w	60	1/0	'6/1	4,380	426	416	205	160
Runcina		2/0	7/w	60	2/0	'6/1	5,310	530	519	235	185
Triton		2/0	19/w	60	2/0	'6/1	5,310	526	514	235	185
Cherrystone		3/0	7/w	60	3/0	'6/1	6,620	656	643	250	200
Mursia		3/0	19/w	60	3/0	'6/1	6,620	650	638	250	200
Razor		4/0	7/w	60	4/0	'6/1	8,350	814	799	315	245
Zuzara		4/0	19/w	60	4/0	'6/1	8,350	805	792	315	245
Limpet		336.4	19/w	80	336	'6/1	8,680	1209	1167	420	325
WITH ACSR REDUCED SIZE MESSENGER
Scallop		4	Solid	45	6	'6/1	1,190	148	144	115	90
Strombus		4	7/w	45	6	'6/1	1,190	158	148	115	90
Cockle		2	7/ w	45	4	'6/1	1,860	233	227	150	120
Janthina		1/0	7/ w	60	2	'6/1	2,850	376	365	205	160
Ranella		1/0	19/ w	60	2	'6/1	2,850	372	362	205	160

Quadruplex Service Drop-Aluminum Conductor

Code	Phase Conductor			Bare Neutral Messenger			Weight Per		Rating(Amps)
Name							1000 ft(lbs)
	Size	Strand	Insulation	Size	Strand	Breaking	XLP	POLY	XLP	POLY
	AWG		thickness	AWG		strength
			(MLS)			(lbs)
AAC NEUTRAL-MESSENGER
Clydesdale	4	Solid	45	4	7	881	208	201.8	100	80
Pinto	4	7/w	45	4	7	881	223	207.9	100	80
Mustang	2	7/w	45	2	7	1,350	333	312.6	135	105
Criollo	1/0	19/w	60	1/0	7	1,990	529	504.5	180	140
Percheron	2/0	19/w	60	2/0	7	2,510	649	620.5	205	160
Hanoverian	3/0	19/w	60	3/0	19	3,310	799	765.6	235	185
Oldenburg	4/0	19/w	60	4/0	19	4,020	986	946.7	275	210
Lippizaner	336.4	19/w	80	336.4	19	6,146	1,546	1,519.20	370	280
ACSR NEUTRAL-MESSNGER
Morochuca	6	Solid	45	6	'6/1	1,190	152	147.4	75	60
Chola	6	7/w	45	6	'6/1	1,190	162	151.7	75	60
Morgan	4	Solid	45	4	'6/1	1,860	226	220	100	80
Hackney	4	7/w	45	4	'6/1	1,860	241	226.1	100	80
Palomino	2	7/w	45	2	'6/1	2,850	362	342.6	135	105
Costena	1/0	19/w	60	1/0	'6/1	4,380	575	550.6	180	140
Grullo	2/0	19/w	60	2/0	'6/1	5,310	707	678.7	205	160
Suffolk	3/0	19/w	60	3/0	'6/1	6,620	872	838.9	235	185
Appaloosa	4/0	19/w	60	4/0	'6/1	8,350	1079	1039.2	275	210
Bronco	336.4	19/w	80	336.4	'18/1	8,580	1613	1568.2	370	280
Gelding	336.4	19/w	80	4/0	'6/1	8,350	1548	1494.3	370	280
6201 ALLOY NEUTRAL-MESSENGER
Bay	6	Solid	45	6	7	1,110	145	140	75	60
French Coach	6	7/w	45	6	7	1,110	155	144.3	75	60
German Coach	4	Solid	45	4	7	1,760	214	208.3	100	80
Arabian	4	7/w	45	4	7	1,760	229	214.4	100	80
Belgian	2	7/w	45	2	7	2,800	344	323.1	135	105
Shetland	1/0	19/w	60	1/0	7	4,460	546	521.1	180	140
Thoroughbred	2/0	19/w	60	2/0	7	5,390	670	641.5	205	160
Trotter	3/0	19/w	60	3/0	7	6,790	825	791.8	235	185
Walking	4/0	19/w	60	4/0	7	8,560	1019	979.7	275	210

6201 ALLOY NEUTRAL-MESSENGER
Code Name	Phase Conductor			Bare Neutral Messenger			Weight Per 1000ft(lbs)		Rating(Amps)
	Size AWG	Strand	Insulation Thickness(mls)	Size AWG	Strand	Breaking Strength(lbs)	XLPE	Poly	XLPE	Poly
Bay	6	Solid	45	6	7	1,110	145	140.0	75	60
French Coach	6	7/w	45	6	7	1,110	155	144.3	75	60
German Coach	4	Solid	45	4	7	1,760	214	208.3	100	80
Arabian	4	7/w	45	4	7	1,760	229	214.4	100	80
Belgian	2	7/w	45	2	7	2,800	344	323.1	135	105
Shetland	1/0	19/w	60	1/0	7	4,460	546	521.1	180	140
Thoroughbred	2/0	19/w	60	2/0	7	5,390	670	641.5	205	160
Trotter	3/0	19/w	60	3/0	7	6,790	825	791.8	235	185
Walking	4/0	19/w	60	4/0	7	8,560	1,019	979.7	275	210

Exhibition
Company Profile Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou, Henan province. We have owned a number of exclusive essential manufacturing technologies and have passed the ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 occupational Heath Management System, ISO 10012 Measurement Management System, and others from China and abroad.
We have been engaged in producing electric cable and wire for nearly 20 years, and we are also a 12-year gold supplier. And we are confident that we can offer the best service and quality for you.
Our product range is as follows:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex, Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories
We take part in many fairs and exhibitions in China and abroad. Our aim is to be our customer's factory in Zhengzhou, China.
We are here to help you place orders of cost-effective electric cable and keep tracking your products and shipment.
Our Factory
Packaging and Shipping The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging, usually overhead insulated cables used reel packaging, wooden drum packaging and iron-wood pallet packaging. The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers' needs.
FAQ 1. who are we?
We are based in Henan, China, start from 2001,sell to Southeast Asia(39.00%),North America(20.00%),South America(15.00%),Mid East(15.00%),Africa(10.00%),Domestic Market(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? Wire,Cable
4. why should you buy from us not from other suppliers? Jinshui Wire & Cable Group is also a key company of high and new technology. We have more than 20years export experience and know most of standards well. we can produce more than 1,400 types of cables and wires in scores of categories.
5. what services can we provide? Accepted Delivery Terms: FOB,CIF; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card; Language Spoken:English,Chinese,Spanish Welcome your kind inquiry!
