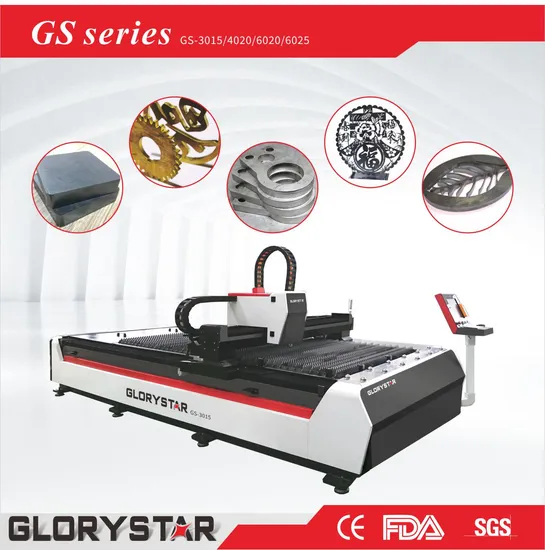

1000W CNC Fiber Laser Cutting Machine

Product Description

1000W CNC Fiber Laser Cutting MachineProduct Features
◊ Adopt Advanced Laser generatorThe machine adopts the most sophisticated Germany IPG laser .
◊ Adopts imported CNC system.It isequipted with the most advaned wireless handheld terminal,it can perform prcessing by remote control.
◊ High-perfomance AC servo motor and high precesily reduction gearbox to get high precision,efficiency and stability.
◊ High Speed----- 1mm Stainless Steel Cutting Speeds Up to 22m/min, 0.5mm Stainless Steel Cutting Speeds Up to 40m/min.
◊ Low Power------ Consumption Energy Saving, Low Power Consumption.
◊ Low Maintenance ------ Optical Fiber Transmission, Non-reflective Lenses Without Optical Adjustment.

Application
◊Applicable Industries:
Widely used in all kinds of metal products industries such as sheet metal processing, cookware and bathroom appliance, advertising & signs, lighting & hardware, electrical cabinets, auto parts, machinery and equipment, household appliance, precision parts, and so on.
◊Applicable Materials:
Mainly applied to all kinds of sheet metal materials non-contact fast cutting, engraving and drilling, such as carbon steel, stainless steel, alloy, manganese steel, galvanized steel, aluminum, copper and metal pipe processing and so on.

GLORYSTAR 1000W FIBER LASER CUTTING THICKNESS
Materials	Thickness(mm)	Cutting speed (m/min)	Auxiliary Gas	Air pressure (bar)
Carbon steel	0.5	50	Air	6
	0.8	28	Air	8
	1	23	Air	10
	2	6.5	O2	3.5
	3	3.5	O2	0.5-1
	4	2.3	O2	0.5
	5	1.8	O2	0.5
	6	1.4	O2	0.5
	8	1	O2	0.5
	10	0.8	O2	0.5
	12	0.65	O2	0.5
	14	0.6	O2	0.5
Stainless steel	0.5	50	N2	7
	0.8	33	N2	10
	1	25	N2	12
	2	8	N2	15
	3	2.8	N2	18
	4	1.2	N2	18
	5	0.8	N2	18
	6	0.45	N2	18
Stainless steel	0.5	55	Air	8
	0.8	38	Air	9
	1	28	Air	12
	2	8.5	Air	15
	3	3.3	Air	18
	4	1.35	Air	18
	5	0.9	Air	18
	6	0.5	Air	18
Aluminum	0.5	25	Air/N2	8
	0.8	18	Air/N2	9
	1	12	Air/N2	12
	2	3.5	Air/N2	18
	3	1.5	Air/N2	18
	4	0.8	Air/N2	17
Brass	0.5	30	N2	12
	0.8	17	N2	12
	1	12	N2	15
	2	3	N2	18
	3	1.3	N2	18
Copper	0.5	18	O2	12
	0.8	12	O2	12
	1	6	O2	12
	2	1.5	O2	15

Samples
Technical Data

Model	GS-3015/GS-6015
Laser Power	1000W-3000W(Optional)
Work Area	3000*1500mm/6000*1500mm
Overal Power Consumption	<12KW
Transmission Mode	Gantry Driver optional (Gear and Rack Double driver Optional )
Working voltage	380V 50Hz(60Hz)
Dimension	4800*2560*1750mm//8100*2300*2000mm

Our Factory
After-Sale Service
◊ We offer professional after-sales installation and guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.
◊ For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service.
◊ Equipment warranty period of one year, optical lenses can not be maintained. Laser generator has 12months warranty, machine maintenance of life.
Trade Fair
About Glory Star
Dongguan Glory Star Laser Technology Co., LTD, Sino-German cooperation, focusing on laser technology & applications, after years of continuous innovation and development, has become a well-known large-scale manufacturer of laser equipment. The company owns office building, R&D Building, machining shop, painting and welding shop, assembling shop, modern showroom and standard industrial factory. The company's main products are metal laser cutting machines, non-metal laser cutting machines, laser marking machines,laser welding machines and bending machines. The annual production capacity of 8,000sets of products sold in more than 100 countries and regions. The company was identified as the national high-tech enterprise, and repeatedly won the technology Innovation Award. As a leader in laser equipment,Glorystar Laser technology Co.,Ltd has a complete R&D system, with many domestic famous universities and research institutions to maintain the close optical and technical cooperation, also is Nanyang institute of science and technology Graduate Trainee base. Products made EU CE certification and the SGS certification, and in all aspects of the incoming, process, machine, shipping and other compliance with ISO quality and environmental management system management guidelines to ensure that the national quality. Carrying the Global view sight, GLORYSTAR keeps on focusing the laser science and technology to share with you in the future successfully
