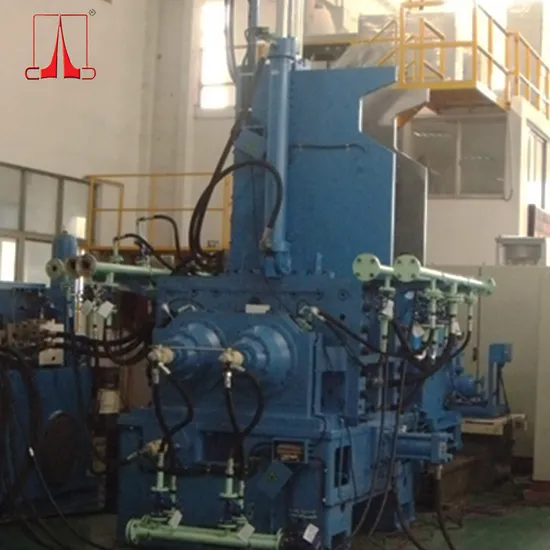

Lh-250y High Mixing Quality Rubber Material Banbury Mixer Intermeshing Rotors

Lh-250y High Mixing Quality Rubber Material Banbury Mixer Intermeshing Rotors

US$100,000.00-3,500,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LH-250Y
Application Area
Chemical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Forced
Warranty
12 Months
Working
Shear Mixer
Rotors
Tangential/ Intermeshing/Customized
Volume
35-410L
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Lanhang
Model Number
Lh-145y
Voltage
Customized
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Main Motor Power
160-2500kw
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Wooden
Specification
ISO9001: 2000
Trademark
lanhang
Origin
China
HS Code
84778000
Production Capacity
300 Sets/ Year

Product Description

LH-250Y High Mixing Quality Rubber Material Banbury Mixer Intermeshing Rotors Application of Our Banbury Mixer It's suitable for plastic and rubber mixing. The mixing chamber adopts special left-middle-right structure which makes maintenance easy.

Advantages of Banbury mixer:
1. Intermeshing or tangential rotor;
2. Rotors, mixing chamber, harmmer and parts which contacts with the material are overlayed with 5mm wear-resistant alloy (up to 50HRC);
3. Pneumatic / hydraulic type top mounted hammer;
4. Inverted AC motor / variable speed DC motor;
5. Copper-ring and hydraulic sealing;
6. 2-wing, 4-wing, 6-wing are available;
7. Excellent dispersing effect;
8. Best mixing rotor and chamber to guarantee 100% mixing effect;
9. Low noise, safe mixing;
10. Maintenance friendly and long-life service

1. Banbury mixer for rubber:
Items
 LX-75L
 LX-100L
 LX-120L
 LX-160L
 LX-190L
 LX-255L
 LX-270L
 LX-410L
Total chamber volume(L)
 75
 100
 120
 160
 190
 255
 270
 410
Useful chamber volume (L)
 50
 80
 100
 120
 140
 115
 188
 319
The main rotor speed(rpm)
 40
 40
 40
 40
 40
 4-40
6-60
 4~40
 6~60
The rotor speed ratio
 1:1.17
 1:1.17
 1:1.17
 1:1.17
 1:1.17
 1:1.17
 1:1.17
 1:1.17
Max capacity (T/H)
 1.25
 1.6
 1.95
 2.64
 2.85
 4.6
 4.6
 7.4
Motor power (KW)
 160
 220
 310
 355
 870
 1500
 1250
 2X1250
Weight(T)
 20
 24
 26
 26
 30
 55
 55
 76


2. Banbury mixer for plastic:
Project\Model
 S-75L
 S-100L
 S-120L
 S-160L
 S-255L
 S-270L
 S-410L
Working capacity of mixing chamber(L)
 75
 100
 120
 160
 255
 270
 410
Rotating speed of rear rotor(r/min)
 40
 40
 40
 40
 40
 40
 40
Main motor power(kw)
 160
 220
 300
 400
 1100
 1250
 2500
Pressed of compressed air(MPa)
 0.6
 0.6
 0.6
 0.6
 0.58
 0.58
 0.62
Weight(t)
 20
 22
 28
 32
 55
 60
 76

Intermesh Rotors (high mixing effects)
Model
 LH-100Y
 LH-145Y
 LH-200Y
 LH-250Y
 LH-330Y
Chamber Volume (L)
 100
 145
 200
 250
 330
Filling Coefficient
 0.65
Rotor Speed (r/min)
 10-60
Rotor Speed Ratio
 1:1.17
Max. Capacity (T/H)
 1.36
 2.2
 3.05
 4.2
 5.0
Motor Power (Kw)
 520
 720
 1100
 1320
 1700
Dimension (m)
 6.6x2.8x4.4
 7.5x3.1x5.5
 8.1x3.5x5.4
 8.2x3.8x5.5
 10.0x4.7x6.6
Weight (T)
 19
 29
 48
 65
 80
