Hot Cutting PVC Pellet Making Machine with Air Silo (CXRQ)

Product Description

PVC Hot Cutting Granulator
Product Description

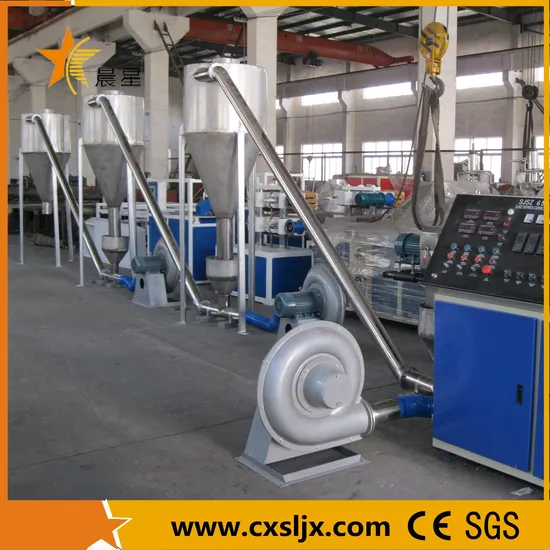

This hard PVC/CPVC hot-cutting pelletizing line consists of SJSZ series conical twin-screw extruder and corresponding pelletizing auxiliary machines.
Process Flow:
Mixer→Spring loader→Conical twin-screw extruder→Mould & Cutter→Air-conveying system→Silo

Main Features
-Saving power: the electrical part adopts advanced frequency conversion technology;
-High effiency: the fast net-changing device may help remove impurities from ganules quickly and effiently;
-Broad application: the conical twin-screw extruder is suitable for various hard PVC & CPVC recipes;
-Zero pollution: all parts of the granules contact are made of stainless steel.

Product Parameters

Extruder model	Screw diameter	Pellet size	Main motor power	Output
SJSZ55	55/110 mm	Φ3-Φ4 mm	22 kw	100-120 kg/h
SJSZ65	65/132 mm	Φ3-Φ4 mm	37 kw	220-260 kg/h
SJSZ80	80/156 mm	Φ3-Φ4 mm	55 kw	320-450 kg/h
SJSZ92	92/188 mm	Φ3-Φ4 mm	110 kw	650-800 kg/h

Detailed Photos

Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.

FAQ
Q: Are you factory or trading company?
A: We are a manufacturer professional in the plastic machinery industry over 20 years.
Q: How can you guarantee your quality?
A: We test each machine before delivery to ensure that it is in perfect condition.
Q: Do you have any after-sales service?
We offer 12 months warranty period. During this period, we can provide parts for free due to manufacture quality issues, human error is not included.

If any need, send message below without hesitation!
