Htl Model Heavy Duty Tractor 3 Point Linkage Rotary Tiller Cultivator

Product Description

Product Description

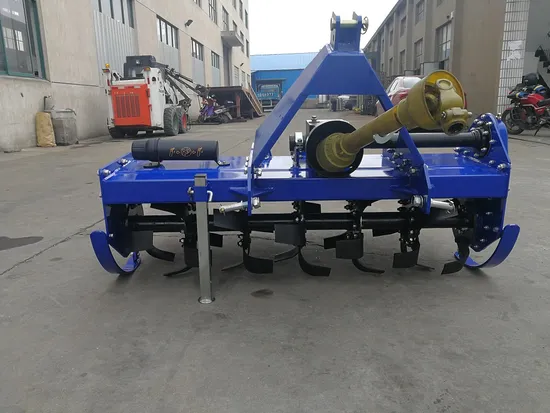

HTL Model Heavy Duty Tractor Rotary Tiller Cultivator
Rotary tiller is suitable for soil preparation, in the vineyard, nursery, orchard, and for gardening. aluminium alloy gearbox, with offset function, side chain drive in oil bath, automatic chain tensioner, 4 spiral blades per flange,adjustable skids to obtain the desired working depth, adjustabke rear shield ensures best ground levelling, three-point hitch, cardan shaft support, CE safety guards.
Product Parameters

Model	HTL105	HTL125	HTL135	HTL150	HTL180	HTL200
Tractor HP	20-55HP	20-55HP	20-55HP	35-80HP	50-80HP	50-80HP
Hitch	Cat1
Working Width(mm)	1050	1250	1350	1500	1800	2000
Weight(kg)	200	225	290	322	345	458
NO. Of Blade	24	30	30	36	42	48
Working Depth(mm)	Max 130mm
Gearbox HP	50HP
Tractor PTO speed	540RPM
Driveline Size	T6
Side Driving	Gear Driving

Detailed Photos
Company Profile
Yancheng Newbang Machinery Co., Ltd. is one of the major tractor implement and ATV implement manufacturers in China.
Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on (30 series and more than 200 models). Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America, Europe,Asia, etc. We get a good reputation from the worldwide customers.
FAQ
Q1. what's your main products? A: Our products are covered almost all farm machines. Q2: How long is the delivery date? A: In general, we can ship the goods within 30-45days after receiving your payment. Q3. Do you have after-sales service? A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality. Q4. Can you print my brand name on it? A: Of course, you just need to send us the picture of your brand. Q5. what's your payment term? Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L. Q6. Can I mix different models together? A: Yes, you can mix different products or models in a container and we will try our best to use the container place. Q7. what your terms of payment? A:T/T, L/C, and western union
