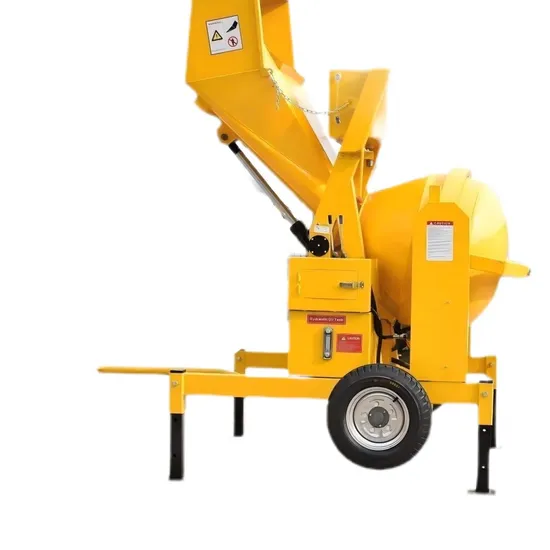

Tdcm500-Dht Tilting Drum Concrete Mixer Machine Construction Equipment

Product Description

Concrete Mixers
TDCM500-DHT
Ningbo Ace Machinery Co.,Ltd
Wholesale Construction machinery 500L Cement Mixer Concrete Mixer

Scope of application:

The concrete mixer ranges from the large-duty mixing truck to the mini mixer. It is a useful tool for either
homeowners who attempt small concrete projects or contractors who should complete large-scale projects where
large batches of concrete and mortar need to be mixed. The machine is designed for safe, reliable functioning as
well as large capacity.

Specifications:

Model	TDCM500-DHT
Total Drum Capacity	500L
Mixing Capacity	400L
Productivity	8-10m³/h
Bags of Cement per Batch	1.5 Bag Cement
Drum rotating speed(r.p.m)	20-22r/min
Drum size	Φ950×900 mm
Displacement of Gear Pump	20mL/r
Diesel Engine type	Air-cooled Diesel Engine 186FE (10 HP)
Engine Start Mode	Electrically Started
tyre Size	2x(5.00-12)
Gross Weight	700KGS
Packing Demension(LxWxH)mm	2080*1250*1980

Features:

1. Rugged mixing drum comes with reinforced rim and highly efficient paddles.
2. Outstanding mixing performance
3. Long-lasting
4. Limited maintenance
5. An extra handle is mounted onto the rear end of the compact vehicle
6. Lockable engine compartment
7. Ergonomically designed concrete mixer is supplied with anti-tip system.
8. Locking system for large handle wheel and foot pedal.
9. Rugged, dependable chassis is also easy to clean.
10. The machine can be supplied with four wheels.

Production plant

Features:

1. Rugged mixing drum comes with reinforced rim and highly efficient paddles.
2. Outstanding mixing performance
3. Long-lasting
4. Limited maintenance
5. An extra handle is mounted onto the rear end of the compact vehicle
6. Lockable engine compartment
7. Ergonomically designed concrete mixer is supplied with anti-tip system.
8. Locking system for large handle wheel and foot pedal.
9. Rugged, dependable chassis is also easy to clean.
10. The machine can be supplied with either two wheels or four wheels.

Factory production


Packaging & Shipping
Exhibition map

Hot Products

CM350-2A	CM350-4A	CM350-2C	CM350-D
JZC350-EML	CM-120H	JZM-350	JZC-350DEW
JZC-350DHL	TDCM-500DHL	JZC-500DH	Concrete pump-HBTS

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
