Cleaning The Equipment, Cleaning The Pump for The Ball Spray 60e: Head12m Flow: 3800L
Basic Info.
Model NO.
DC60E-1
Driving Type
Magnetic
Material
PPS+30% GF
Structure
Single-stage Pump
Assembly
Booster Pump
Power
Electric
Start Up
Magnetic Pump
Type
Blade Pump
Application
Submersible Pump, Clarified Water Pump, Oil Transfer Pump, Chemical Pump
Industry
Mechanical Pump
Media
Water, Oil, Coolant and Other Acid Base Solutions
Performance
Wear Pump
Theory
Centrifugal Pump
Transport Package
Neutral Packing
Specification
152mm*88mm*110mm
Trademark
zksj
Origin
China
HS Code
8413709190
Production Capacity
100, 000 PCS/Month
Product Description
Cleaning the equipment, cleaning the pump for the ball spray.Product Features

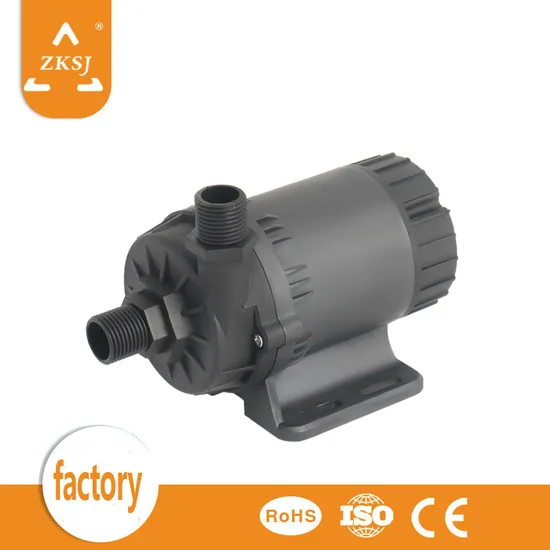

| 1 | Product name | ZKSJ DC60E DC Pump | |
| 2 | Model No. | DC60E DC pump | |
| 3 | Weight: | 0.89kg | |
| 4 | Life span: | ≥30000h | |
| 5 | Waterproof Grade: | IP68 | |
| 6 | Color: | Black | |
| 7 | EPL: | Meet ROHS requirements | |
| 8 | Material of pump shell: | PPS+30%GF | |
| 9 | Noise class: | ≤40dB | |
| 10 | Leakproofness: | ≥0.8MPa | |
| 11 | Insulation grade: | H Grade(180°) | |
| 12 | Working principle: | Centrifugal pump | |
| 13 | Application | ECO Car cooling system, Cooling circulation system |
.Range of application
| 1 | Ambient Temperature | 3-phase controller inside for non-submersible/controller outside for submersible |
| 2 | Liquid Type | Oil, water, and other liquids |
| 3 | Liquid Temperature | -30°-100° 3-phase controller inside for non-submersible/controller outside for submersible |
| 4 | Power | DC Power Supply |
.Electrical parameters (only for reference)
| 1 | Product model: | DC60E-12100PWM DC60E-12100VR DC60E-12100S | DC60E-24120PWM DC60E-24120VR DC60E-24120S | DC60E-36120PWM DC60E-36120VR DC60E-36120S | PWM:PWM speed(50-800HZ/ 5V) VR:0~5V/Potentiometer speed S:constant rotational speed | |
| 2 | Rated Voltage | 12V DC | 24V DC | 36V DC | ||
| 3 | operating voltage range: | 5-12V | 5-28V | 5-40V | Within this range, the pump can work normally | |
| 4 | Rated current: | 5.4A(6.6A) | 4.5A(5A) | 3A(3.3A) | Closed outlet current (open pumping current) | |
| 5 | Input Power: | 65W(80W) | 108W(120W) | 108W(120W) | Closed outlet power (open pumping power) | |
| 6 | Max. Flow: | 3200L/H | 3800L/H | 3800L/H | The flow of water when there is no takeover | |
| 7 | Max.Head | 10M | 12M | 12M | Static head | |
| 8 | Minimum input power supply: | 12V-7A | 24V-6A | 36V-4A | ||
.Additional function instructions
| 1 | K-jam protection | When the impurity enters the rotor chamber, the rotor stops running, and the pump stops running as well. | |
| 2 | Dry run protection | The pump will stop working when no enough water inside pump. | |
| 3 | Overloading protection | When the voltage is unstable or exceeds the rated power, the pump will stop working. | |
| 4 | Power reverse connection | Wrong connection of the power supply(positive and negative), the water pump will stop running, and then re-connected, can work normally. | |
| Built-in pump driver | Suitable for non - diving installation, medium below 60 degrees | ||
| The pump driver is external | Submersible installation, high temperature resistance | ||
.Installation Drawing
Notice: The pump is not self-priming pump. When install, please make sure there is enough water in pump gland. Meanwhile, the pump must be installed below the liquid level in the tank.
.Head flow curve
.Dimension and appearance
.BOM
| Bill of Material | |||||||||
| No. | Description | Specification | Qty | Material | No. | Description | Specification | Qty | Material |
| 1 | DC60E Cover | PPS | 1 | PPS | 13 | ||||
| 2 | O-ring | 50*55*2.5 | 1 | EPDM | 14 | ||||
| 3 | DC60 Body | PPS | 1 | PPS | 15 | ||||
| 4 | 60 Stator | 50*27*25*6P*H25 | 1 | Iron Core | 16 | ||||
| 5 | 60 3-phase insulated sleeves | PA66+30% | 1 | Nylon | 17 | ||||
| 6 | DC60 Back Cover | PPS | 1 | PPS | 18 | ||||
| 7 | 60 Ferrite closed impeller | PA66+30% | 1 | Nylon | 19 | ||||
| 8 | Ceramic shaft sleeve | H3.5*8*3.7 | 1 | Zirconia | 20 | ||||
| 9 | 60 Ceramic shaft | 40*3.7 | 1 | Zirconia | 21 | ||||
| 10 | Graphit sleeve | H26.8*7*3.72 | 1 | Graphit | 22 | ||||
| 11 | 56 Ferrite magnet | 28*24*12.8 | 4 | Magnet | 23 | ||||
| 12 | 24 | ||||||||
.Failure and maintenance
| Failure and maintenance | |||
| Failure | Reason | Solutions | |
| 1 | Large current and small flow | Impurities in the rotor | injection water from the outlet to clean the inside |
2 | stop working and current is unstable | The rotor is stuck | Clean foreign matter makes rotor stuck |
| Stop working and short circuit | Control board is damaged | Change a new pump | |
| Stop working and no current | Check the power cord | Reconnect the power | |
3 | Big noise | Impurities in the pump | Clean the impurities |
| Air in the pump and can't get out | Put the outlet upwards, makes water no air | ||
| no water in the pump, dry run | Make sure enough water inside | ||
.Notice It is strictly forbidden to use liquids with impurities greater than 0.35mm and ceramic or magnetic particles. If it is not used for long time,make sure water inside pump before power on. Do not let pump dry run If not used for long time, please make sure cord connection correctly. If use in low temperature environment, please make sure the water won't be frozen or thick. Please check if there is water on connection plug, and clean it before use.
