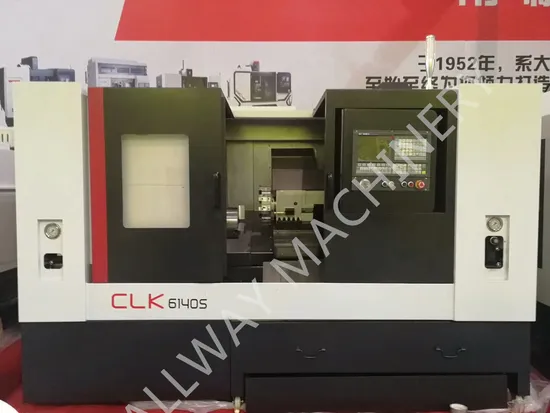

Clk6140s Slant Bed CNC Lathe Machine
Basic Info.
Model NO.
CLK6140S
Type
Multi-Axis Automatic and Semi-Automatic Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Product Name
CNC Lathe Machine
Belong to
CNC Machine
Main Motor
7.5
Spindle Bore
64
Through Bar
50
Travel for X
200
Travel for Z
600
Ball Screw X
32*8
Ball Screw Z
40*10
Used as
CNC Lathe
Standard Configuration Hydraulic Chuck
200
Transport Package
Plywwod
Specification
CLK6140S
Trademark
ALLWAY
Origin
China
HS Code
845811
Production Capacity
1000PCS/Year
Product Description
CLK6140S Slant Bed CNC Lathe Machine1.Product introduction and use
This machine is a fully functional slant bed CNC lathes, especially suitable for small and medium-sized plate, short shaft parts of high speed, high precision machining. There are two straight axis X, Z, can do long stroke integral movement by hydraulic driven tailstock . be able to complete full functions by one clamping for: turning, drilling, boring, tapping, reaming, and others.
2.maintechnical parameters
| Items | Unit | CLK6140S Specification | |
| Maxi. swing over bed | mm | Φ540 | |
| Max. processing dia.(not over carriage /over carriage) | mm | 400/290 | |
| Max. distance between Spindle standard configuration chuck end face(doesn't contain claws) to top of tailstock; (Max. support length) | mm | 600 | |
| Max. Dia. Of through bar inner spindle (when standard configuration ) | mm | 50 | |
| Main motor | kw | 7.5 | |
| Max.travel | Travel for X | mm | 200 |
| Travel for Z | mm | 600 | |
| rapid moving | For X | m/min | 18 |
| For Z | m/min | 18 | |
| Guide way | Lathe bed guide rail tilt Angle | degreee | 30 |
| Guide way type | Ball screw | ||
| Single width of X/Z/W(tailstock) | mm | 35/45/45 | |
| Ball screw | X | mm | 32*8 |
| Z | mm | 40*10 | |
| Spindle | Spindle speed range | r/min | 30-4000 |
| Spindle nose | A2-6 | ||
| Spindle inner cone | 80 | ||
| Standard configuration hydraulic chuck | mm | 200 | |
| tailstock | tailstock inner cone | MT | MT5 |
| Move type | Hydraulic(integral type ) | ||
| travel | mm | 450 | |
| Cooling | cool pump power | w | 370 |
| Cool pump flux | L/min | 75 | |
| Cool pump volume | L | 200 | |
| Tool turret | Tool turret type | horizontal | |
| Tool number | pcs | 10 | |
| Tool specification | mm | Square 20/round 25 | |
| Lubrication type | Auto | ||
| Position accuracy | Mm | ±0.008 | |
| Re-position accuracy | Mm | ±0.004 | |
| Power form | AC voltage | V | 3 380±10% |
| Frenquency | HZ | 50±10% | |
| Total Power capacity | KVA | 15 | |
| weight | kg | 3500 | |
| Overall dimension(L*W*H) | mm | 2800*1750*1870 | |
3.Standard configuration
1)8″ 3-jaw hydraulic chuck and soft jaw ;
2)spindle motor: servo motor,7.5KW(48N.M);
3)Max spindle unit speed 4000rpm'
4)10 position hydraulic tool turret(contain turning/boring apron each 2);
5) Manual pulse generator(hand wheel).;
6) Z axis rigid tapping Z;
7) Centralized automatic oil lubrication; ;
8)outlay water coolant and air coolant system;(,,,);
9)chip by manual;
10)All protective sheet metal shield and guide shield;
11)leveling pads;
12) Work light;
13)warning lamp;
14)hydraulic unit;
15)Fanuc 0i MF5 CNC system
4. Optional configuration:
1)GSK, Siemens, Mitsubishi and so on cnc controller.
2)auto chip conveyor;
3)manual chuck;
4)servo tailstock;
5) sub-spindle;
6)Elastic collet and collet
7) tool setting,
8)feeder bar.
5.Slant bed CNC LATHE Packing:
Contact ALLWAY MACHINERY , get more professional information!
