New Condition Steel Bar Straightening and Cutting Machine Rebar Straightener and Cutter

Product Description

Technical Parameters

Model	GT 6/14S
Working Capacity	Φ6-Φ14mm Steel Smooth Round BarΦ6-Φ14mm Deformed rebar
Cut-off Length	800mm-12000mmor customized according to client's requirements
Working Speed	0~85 m/min
Pulling Motor	18.5KW-4P
Hydraulic Oil Pump Motor	5.5KW-4P
Length accuracy	±5 mm
Linearity	±2 mm/m
Power Specification	3 phase, 380V, 50Hz or Customized as Clients' Requirements.
Length adjust mode	Manual/Automatic
Control System	Auto. Control System (Manual System as backup)
Control Box	CNC Control Box
Product Collect Stacker	12m or as clients need
Working Temperature	-40-40ºC
Net Weight	1100KG
Gross Weight	~1500KG
Dimensions	2.9(L) x 0.8(W) x 1.1(H)m

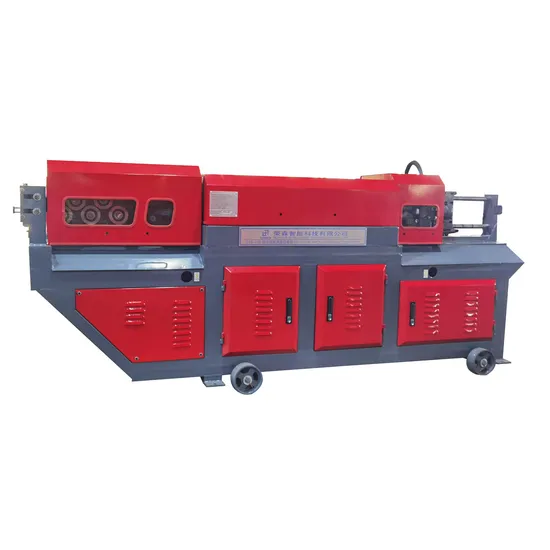

GT6-14S Steel Coil Wire Straightener and Cutter
GT Series High-Speed Steel Wire Straightening and Cutting Machine used for straightening and cutting 6-14mm hot-rolled and cold-rolled steel coil wire and deformed rebar. mostly used in steel mesh production plants, precast concrete component produce facotry, normal building project, construction, tunnel, bridge, dam, high-speed road, High-speed train and so on.
Application Scope:
1. Hot/Cold Rolled Rebar.

2. Low Carbon Rebar.

3. Cooper Wire ≥Φ6mm.
Machine Functions:
1. Decoiling Steel Wire from the coils.
2. Straightening Steel Wire (Keep linearity low than ±2 mm/m).
3. Cleaning the surface of steel wire (Brush the rust of steel wire).
4. Cutting straight rebar as preset length (Keep the length tolerance less than ±5 mm)
Step 1: Raw material: Coil Steel Wire Step 2:Feed Coil Wire to Machine Step 3:Collect straight bar Detailed Photos
Technical Advantages
1. Suitable for straightening and cutting cold-rolled round bar/ribbed bar, and hot-rolled round/ribbed bar.2. Intelligent control: Auto. Control System (Manual System as backup). Easy operation and working reliably3. Low failure rate: Due to the fine processing of parts and strict quality control, after installation and debugging, under normal working conditions, it can maintain trouble-free operation for a long time.4. World Advanced & Leading technology: Machine straightening and cutting technology 5. High working speeds.6. High cutting accuracy: length tolerance: ≤ ±5mm7. High straightness: ≤ 2 mm/m
Working Applications Fields:
Packaging & Shipping
FAQ
1. Q:Do you have your own production factory?A:Yes, we not only have our own factory,We also have a cooperative relationship with other factories in China2. Q: Can you send us samples?A: We are pleased to send you the sample to test the quality and market.3. Q: About your products, could you do it OEM?A: Yes, OEM service is available.4. Q: Do you also provide spare parts ? A: Once we confirm the models you'd like to order, we will send you the diagram for checking and also suggest you someeasy-broken parts.5. How long is your machine warranty ?A: One year(Artificial damage and incorrect use is not included),within warranty period ,we will offer free part and maintain video, or ever can teach you face-to-face. if machine have serious quality problem ,we support to back .6. Q: What's the delivery time?A: It usually takes about 7-30 working days to produce one order.7. Q: How is the payment terms?A: Normally T/T 30% in advance and T/T 70% before shipment, other terms could be discussed and confirmed then.8. Q: Can I mix different models in one container?A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.9. Q: How does your factory do regarding quality control?A: We always pay great attention to quality control from the very beginning and every product was tested piece by piece before delivery.10. Q: Do you have quality certification?A: Yes, we have CE, SGS,ISO, ect.
