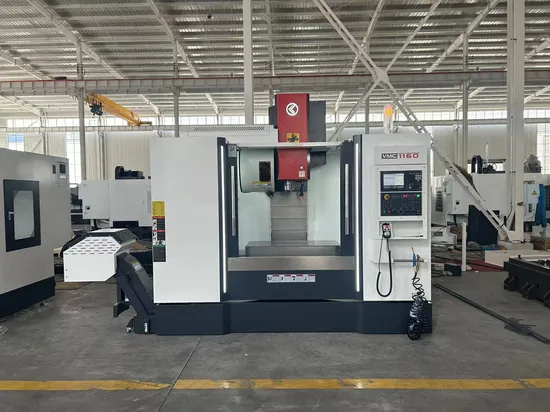

High Precision Linear Guideway Vmc Machine Center

High Precision Linear Guideway Vmc Machine Center

US$20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC1160, VMC1370
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Container
Specification
650, 850, 1050
Trademark
Allway
Origin
China
HS Code
84571010
Production Capacity
1000PCS/Year

Product Description

Main configuration & accessories:
1. Resin sand casting;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, umbrella type and disc type are available;
7. Import bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosed cover;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and Internet interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Item Unit VMC650 VMC850 VMC855 VMC1160 VMC1370
X axis travel mm 700 800 800 1100 1300
Y axis travel mm 450 500 550 600 700
Z axis travel mm 500 500 550 600 700
Spindle nose to worktable mm 120-620 150-650 140-690 120-720 110-810
Spindle center to column mm 500 550 595 650 750
Leadscrew diameter X,Y,Z mm Φ40 Φ40 Φ40 Φ40 Φ45
Linear guideway width X,Y,Z mm 35/35/35 35/35/35 35/45/45 45/45/45 45/45/45
Worktable Length mm 900 1000 1000 1200 1400
Worktable width mm 400 500 550 600 700
Max loading capacity kg 400 500 600 800 1000
Spindle taper BT40 BT40 8000 8000 8000
Spindle speed rpm 8000 8000 7.5/11 7.5/11 11/15
Main motor power kw 5.5/7.5 7.5/11 BT40 BT40 BT40
Fast moving speed (X/Y/Z) m/min 36/36/36 48/48/48 48/48/48 36/36/36 24/24/24
Cutting speed mm/min 1-10000 1-10000 1-10000 1-10000 1-10000
Feed motor power N/M 8/8/12 12/12/22 3/3/4.5 3 *3 *4.5
Capacity pcs Umbrella 16 Arm 24 Arm 24 Arm 24 Arm 24
Max tool diameter mm 90 120 120 120 120
Max tool weight kg 8 8 8 8 8
Max tool length mm 250 300 300 300 300
Positioning accuracy mm 0.008 0.008 0.008 0.008 0.008
Repeat accuracy mm 0.005 0.005 0.005 0.005 0.005
Length mm 2800 3000 3200 3540 3280
Width mm 2200 2300 2300 2800 2560
Height mm 2800 2900 2700 2800 3200
Weight kg 3800 5200 5500 6900 11000
