100% virgin PVC material cooling tower fill MC75 counterflow film fill

100% virgin PVC material cooling tower fill MC75 counterflow film fill

Product Description

Product Description

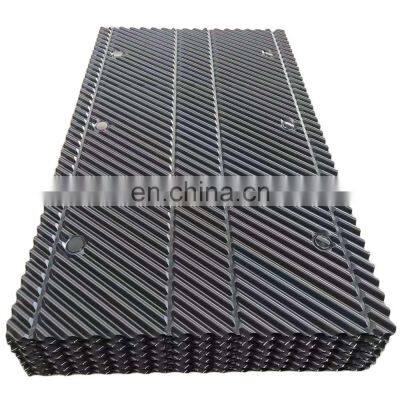

Product Details100% virgin PVC material cooling tower fill MC75 counterflow film fillMC75 cooling tower fill is a film fill system designed for counterflow towers offering you several distinct advantages. Crossed corrugations provide the surface area and turbulence to develop efficient heat transfer. The corrugations inherently establish uniform fill sheet spacing at 0.75"(19mm).MC75 fill is thermoformed from 0.015inches thick, UV inhibited, chemicallyresistant polyvinyl chloride (PVC). The flame spread rating is less than 25 per ASTM E-84 and is considered self-extinguishing.The material is extruded and manufactured to rigid specifications before forming. Usingcounterflow MC75 film fill in place of existing splash type fill in counterflow towers usually means reduced fill height, which translates into reduced pumping head. MC75 will also provide greater cooling tower capacity, which means your current performance level will require less fan energy.The fill pack depth (air travel) is variable to provide the proper heat transfer area within a single fill layer. If another layer of fill is necessary for situations where additional air travel is required, it will be limited to only one. Limiting the number of interfaces between packs minimizes restrictions that usually cause fill clogging. MC75 counterflow fill can be hung from structural members or it can be bottom-supported in virtually all counterflow cooling towers, regardless of a cooling tower’s age or manufacturer.MaterialWidthLengthSheet SpaceCustomized SizePVC/PP (virgin)1200mm1830mm19mmYesML cooling tower fill:MX fill is a hanging film type cooling tower fill which spreads the water into a thin film, flowing over large vertical surfaces, promoting maximum exposure to air flow. This type of fill provides much more water surface exposure per cubic foot than splash type fill.Product Processing100% virgin PVC material cooling tower fill MC75 counterflow film fillCooling tower fill is made of PVC or PP plain plate. They are hot pressed in the certain mould, and then be produced according to different design and be used in different cooling towers, especially in the industrial cooling tower.The ML cooling tower fill is one of famous and popular PVC cross flow fills in all brands of the cooling tower fills. It hot sales in the worldwide and have at good lifetime in using.Product packaging100% virgin PVC material cooling tower fill MC75 counterflow film fillCooling tower fill are always packed on pallets with film wrap.Packing Method: Carton & Plastic Film, Pallet, Wooden Box or Crate, applicable to the container shipping. Deliver Time: Within 10-15days since receiving the deposit or according to the quantity of your need. Transport Ways: By sea, By air ,By express delivery.For more details, please no hesitant to contact me as following:
