High Quality Needle Punching Carpet Nonwoven Making Machine Used for Exhibition

Product Description

Product Description
Product Application hot sale High quality nonwoven machine needle punching carpet making machine used for exbition , stairs
1:Final Products Name:waste felt, geotextile , needle punching fabric.
2:Raw Material:Polyester staple fiber, polyester hollow staple fiber(optional),Low melting point fiber and natural wool fiber etc, specification:0.7D-25D

3:Production process: A percentage of polyester staple fiber ,hollow staple polyester(waste fiber or waste cloth fiber) and low melting point fibers be opened and blended by opener, then carded and lapped with required thickness, and set by the process of needle , oven and setting.
4:Products feature: good permeability, good warmth retention property, lightweight sound absorbing, high resilience, anti-aging, washable, clean with no harmful substances.
5:Products Application: The product is widely applied to industry,high way uses.
6:Needle Punching Type : Single Needle Plate Upper
7:Stroke :30mm

8:Needle Spread Form : computer irregular messy form.
9:The density of needle spread : 7500s/m--8000s/m

10:The speed of outputting fabric :1-12m/min
11:The needle plate adopts aluminum-magnesium alloy plate. Needle hole diameter is1.83mm and stripping plate adopts 10mm plate, moreover the end of the needle plate adopts 12mm plate, and the bottom of the end of needle plate is hit cone, besides the surfaces of the two plate are doing electroplating treatment
12:The eccentric and the main spindle bearings adopt famous domestic brand.
13:The feeding mesh roller adopts 159mm seamless steel pipe, and the outputting roller adopts 159mm steel pipe.
14:The stripping plate and the end of needle plate adopt worm wheel electric lift.

15:The products are widely used in the household carpet and easy worn place.Such as business office,meeting
room,Corridors,stairs and the lobby ground.
16:Production Line Processing :

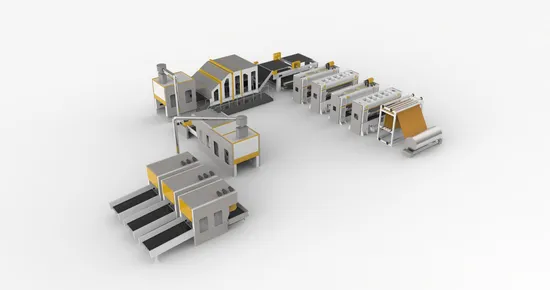

Bale Opener→Main opening→Big Cabinet Blender →main opener →Vibrating Feeder→double Cylinder Carding Machine→Cross Lapper→pre-needle punching machine →needle punching Machine→needle punching machine →ironing machine →Automatic Slitter and Winder




Certifications
Detailed Images
Machine Parts
Name: weight type opener machine
Brand: aolong
Original: china
To loosen all kinds of fibers in bundles, then transfer them to next procedure via blower fan. It is equipped with strong magnet to absorb metal impurities. The pre-opening is by slice -style roller to reduce fiber damage.
Main Features
Name: Big cabinet blender
Brand: aolong
Original: china
Working principle:Spatter the opened fiber evenly into the blender by rotate throw head. Photoelectric control the spiked lattice running with fibers, when it is running,the speed difference between the spiked lattice and PVC lattice will stir mix the fibers;when the spiked lattice stop, the flat lattice will move slowly, to store the fiber;

Machine Parts
Name: Vibrating Feeder
Brand: aolong
Original: china
Spike lattice is wooden bar with steel nail,bottom with sealed canvas.Front and back installed with 2sets of photoelectric automatic linkage control,the height can be adjustable
Main Features
Name: needle punching machine
Brand: aolong
Original: china
Working principle:Needle board drive the needles moving up and down frequency,teeth of the needles will drive the fibers interweave together,to be compact fabric;
Our Service
A.L employees have special sense of responsibility and an excellent team spirit,therefore machinery complies to the highest standard in nonwoven industry creating by with individual outstanding components.
Supported by modern technology A.L designed for custom-built machinery and machinery offers an optimum solution for all customer requirements

A.L supports our customers service 24 hours A day,7 days work ,Any inquiry could be replied within 1 hour pre-sales and after-sales.
We Believe that only :Best Quality Machine With Innovative Ideas and Excellent After-sale Service:"shall meet your special requirements.

Packing & Delivery
Nude packing , wooden case is optional.
case packing:Carding machine, lapper and electric boxes wooden case packaged. Other machines nude packaging.
Any damage in transport of machines is not duty of the seller.
