X2008 Gantry-Type Milling Machine OEM China Xili

Product Description

Product Description

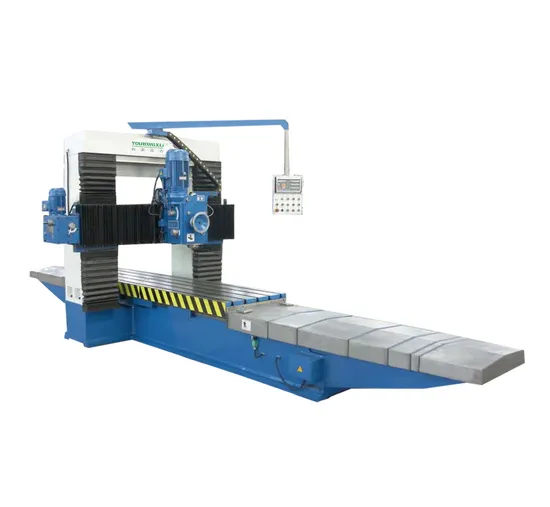

X2008 Gantry-type Milling Machine

Detailed Photos
Product Parameters

Specification		Unit	X2008
Max. travel	Length	mm	2000	3000
	Width	mm	1100
	Height	mm	800
Distance between columns		mm	1140
Table Size	Length	mm	2000	3000
	Width	mm	800
Table feeding speed	Feed		infinite
	Rapid travel		1400
Spindle taper			7:24 ISO50
Spindle speed step		r/min	82-505
Swivel angle of milling head			±35°
Feed speed of milling head		mm/min	65/320/890
Milling head travel		mm	350
Power of spindle motor		kw	7.5
Power of table motor		kw	4
Overall size	Length	mm	4000	6000
	Width	mm	3000
	Height	mm	2300

Certifications
We have 68 patents and all of our products have got the CE,TUV,SGS,ISO9001/9002 and other authority approved.

Packaging & Shipping
standard export packing:
plywood case with steel pallet, inside with plastic bag on machine.
Steel pallet:
1.strong carring capacity
2.Eco-friendly and recyclable
3.Standard export package, fumigation-free
4.Flexible and convenient for transportation

Company Profile
Tengzhou Xili Machine Tool Co., Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. Our company is located in the scenic hometown of Mozi who is the famous thinker in ancient China.

It covers an area of about 20000 square meters. Our fixed assets are 20 million RMB. There are 430 workers, including 132 technicians. We are equipped with 18 sets of precision processing machines and 260 sets of testers. Our company is a high tech enterprise for strong technical strength. With business management standardization and perfect sales and after-sales service, we have established the best brand of "YOU RONG XI LI".Our main products include vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, RAM type milling machines and vertical drilling machines with all 30 categories.
In 2003, we attained ISO9001 quality guarantee system certification. With more than 10 years′ history of milling machine production, we have advanced technology and rich managing experience. Our milling machine was ranked the first place in China. We are capable of designing and manufacturing special machine tools which sell well all over country and are exported to the USA, Germany, Britain, Southeast Asia, the Middle East and Africa.Our company insists on "professional services and creating value for customers". We provide high quality products, reasonable prices, satisfactory service and timely delivery. We are welcome all customers from at home and abroad to visit our factory.


FAQ
1. who are we?
We are based in Shandong, China, start from 1999,sell to Domestic Market(50.00%),Western Europe(20.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),Southern Europe(2.50%),Central America(2.50%),North America(2.50%),Oceania(2.50%),Africa(2.50%),South America(2.00%),South Asia(0.50%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,machining cener,gantry milling machine,cnc gantry milling machine.
4. why should you buy from us not from other suppliers?
Xili Machine has independent import & export right for self-manufactured products. In 2002, we passed ISO9001 and got CE certification in 2007. it was awarded as the national high-tech enterprises in 2010.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
