Free Quote Biomass Waste Dryer Suitable to Cotton Stalks, Wood Chips, Sawdust

Product Description

Product Description

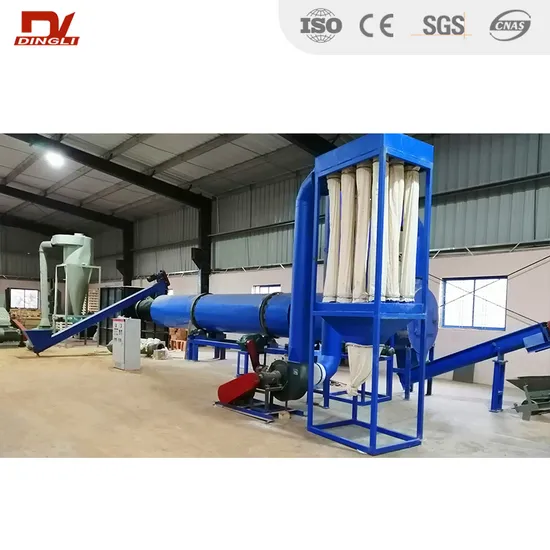

Agricultural Waste dryers are consist of a heating furnace, feeding port, drum, filter drum, conveying pipe, cooling drum, and discharging port. agricultural Waste is fully dried in the rotary drum and gets separated again before entering the conveying pipe for further drying. The baffler can keep the impurities out of the conveying pipe and ensures the high quality of dried sawdust. With the combined work of rotary drum and injection pipe, wet materials are fluidized and fully contacted with the hot flow.
Biomass Agricultural Waste Dryer is an important part of biomass fuel production equipment. By drying agricultural Waste, they can be further pelletized to produce combustible biomass fuel. agricultural Waste dryer plays a vital role in the recycling of biomass fuel and is of great significance to promote economic development and environmental protection.
Biomass agricultural waste dryer is suitable for wood chips, sawdust, bamboo chips, wood chips, shavings, barley straw, oat straw, wheat straw, rye straw, rice straw, sorghum straw and corn straw as well as potato vines, beans Drying of stems, peanut shells, coconut shells, coffee shells and other materials.
Product Parameters

Model(DLSG)	1409	1615	2008/3	2010/3	2210/3	2510/3	2512/3	2912/3
Input Capacity(t/h)	1.53	2.89	5.2	6.63	7.24	8.91	10.5	12.14
Output Capacity(t/h)	1.08	2.03	3.67	4.68	5.11	6.29	7.41	8.57
Vaporization(t/h)	0.45	0.85	1.53	1.95	2.13	2.62	3.09	3.57
Early Moisture(%)	40±5%
Final Moisture(%)	15%(adjustable)
Drying Temperature(°C)	280±30
Total Power(KW)	34	45	78	90	105	125	140	155
Total Weight(T)	22	28	40	45	50	60	68	76
Plant Area(m*m)	5*15	6*22	8*16	8*18	8*20	10*20	10*24	10*24
Except above models, we also can supply special model according to your requirements.

Working Principle
The material first enters the inner layer of the rotary drum from the feeding device to achieve downstream drying. It is continuously picked up and scattered under the lifting plate in the inner layer to achieve heat exchange; then it moves to the other end of the inner layer and enters the middle layer. , carry out counter-current drying, and are repeatedly lifted up in the middle layer, showing a two-step forward, one-step backward movement; then, the middle layer can fully absorb the heat emitted by the inner roller and the heat of the middle roller, and at the same time The drying time is extended, and the material reaches the best drying state here. Finally, the material travels to the other end of the middle layer and falls into the outer layer. It travels in a rectangular multi-circuit manner in the outer drum. The material that has reached the drying effect travels quickly and is discharged from the drum under the action of hot air. The wet material that has not reached the drying effect cannot be quickly discharged due to its own weight. Travel, fully dry in this rectangular copy plate, thus completing the entire drying process.

Company Profile
Zhengzhou Dingli Group's has products including wood chips, sawdust, shavings, bagasse, coffee grounds and other biomass drying pellet production lines. Pomace, beer yeast, cassava residue, etc. feed Drying equipment. Manganese ore, sand, sludge, gypsum, fly ash, etc. mineral slag drying machine. Raw coal, coal slime, lignite, and anthracite coal drying plant, Coconut fiber & cocopeat drying equipment. Poultry manure dryer and organic fertilizer plant. Continuous biomass charcoal making machine, biochar making plant.
we also provide related wood shaving machines, pellet machines, belt dryers, etc. which required by the production line.
With 20 years of R&D and production experience, we have a 350+ of technical patents. Have a professional installation and after-sales team. There have been many successful cases in the world.

FAQ
Q1: What's your business model? Trading company or factory?
A: We are a 20 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and
after-sales service can be guarantee.
Q2: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO. We will pick you up at airport. Welcome to visit our factory.
Q3: What is the Quality of your products?
A: Dingli Group products come with best quality, and our products passed CE certification, exported to lots countries around the word, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. 3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
