Multi-Functional Robust CNC Milling Machine Center for High Quality Machining Systems

Product Description

High-Precision 3/4/5 Axis CNC Milling Machine for Hard Metals and Alloys
Product Description
Step into a new era with the TZ-V1165 Line Rail Vertical Machining Center, a pinnacle of CNC engineering excellence. This state-of-the-art masterpiece integrates ergonomic design, precision manufacturing, and avant-garde automation, marking it as an icon in modern machinery. Each unit is sculpted through meticulous engineering simulations and rigorous prototype trials, guaranteeing its versatility for challenging domains such as medical devices, UAV components, next-gen automotive parts, precision fixtures, and automation equipment parts. Indulge in the seamless, efficient mass production of high-precision components, boasting unparalleled reliability and efficiency.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

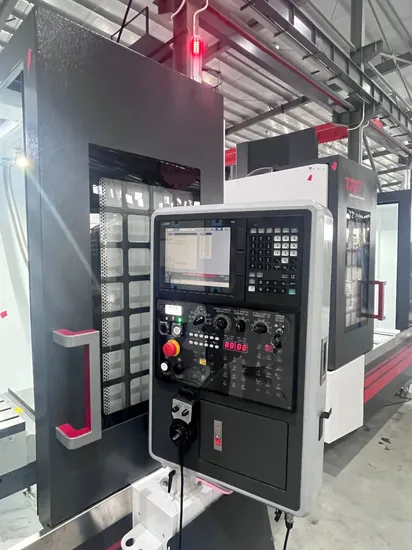

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
Our production environment, crafted to the pinnacle of perfection, ensures exceptional performance at each stage, offering processing conditions that are second to none.
Our state-of-the-art facility is a powerhouse of innovation, featuring imported horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines. This premium setup delivers flawless accuracy in every workpiece, significantly boosting assembly precision and enhancing the longevity of the final product.
Cutting-Edge Detection Methods
By employing meticulous positioning accuracy tests combined with state-of-the-art laser technology corrections, we strictly adhere to the rigorous German VDI3411 inspection standards. These exhaustive checks are performed five times to guarantee unmatched precision.
Prior to leaving our factory, every machine tool undergoes stringent processing side tests to verify its compliance with real-world demands, ensuring the precise accuracy required in the field.
Product sample
• Our CNC machine center is a powerhouse of innovation, seamlessly blending milling, drilling, and tapping functionalities to deliver unmatched versatility.
• Master the art of machining with our CNC machine, perfectly suited for processing diverse metal profiles such as aluminum, steel, and copper, as well as various non-metallic materials.
• CNC Vertical Machine tools have become indispensable assets in a multitude of industries, including 3C electronics, rail transportation, aerospace, and liner module guide rail sectors,and beyond, adeptly fulfilling the evolving challenges of modern engineering.
Packaging & Shipping
•Highly Protective
•Structural Stability
•Environmentally Friendly and Recyclable
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T, with 40% initial payment upon order and 60% balance payment before shipment.
2. What trade terms do you offer?
A: We offer FOB, CFR, and CIF terms.
3. What is the delivery time?
A: For standard machines, the delivery time is within 30 days. Special machines may require additional time. You can place your order based on the provided delivery and shipping times.
4. What is your minimum order quantity and warranty?
A: The minimum order quantity is one set, with a one-year warranty.
5. How are the machines packaged?
A: Machines are standardly packed in wooden cases.
6. How can I choose the most suitable machines?
A: Please provide your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us product drawings, and we will help you choose the most suitable machines.
