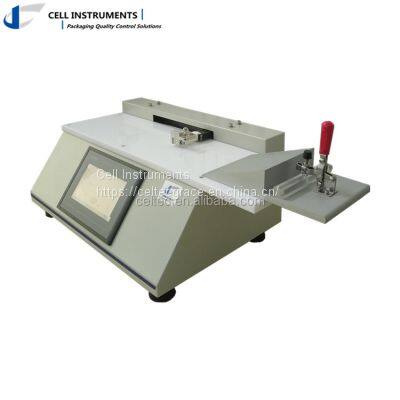

Stretch Wrapping Film Peel Cling Tester measures the cling between two layers of film and help to determine the property of stretch wrap material ability to adhere to it.
It complies with ASTM D 5458, BB/T 0024.

Test Range	5N or as required
Resolution	0.01N
Elongations Lines	50%, 100% and 200%
Test Speed	1-500 mm/min
Material	Wrapping film, cling film
Printing	Microprinter
Control	PLC and HMI touch screen
Accuracy	0.5 F.S.
Power	100~240V

Detailed Images
Features
* 7 inch TFT touch screen operation (human machine interface)
* PLC control unit for stable performance
* Real time display of test curve, peak value recording.
* Test speed is adjustable.
* Different connection of loadcell with sample eliminates the interference caused by the friction and gravity of pulley and
string, which are commonly used in traditional method.
* Precision ball screw for accurate speed & displacement.
* Limiting device and automatic returning.
* Supportive lines of elongation rates, 50%, 100% and 200% engraved
* Microprinter
* Coefficient of friction function can be added (Optional)
Standards
ASTM D5458-95(2012), Standard Test Method for Peel Cling of Stretch Wrap Film
