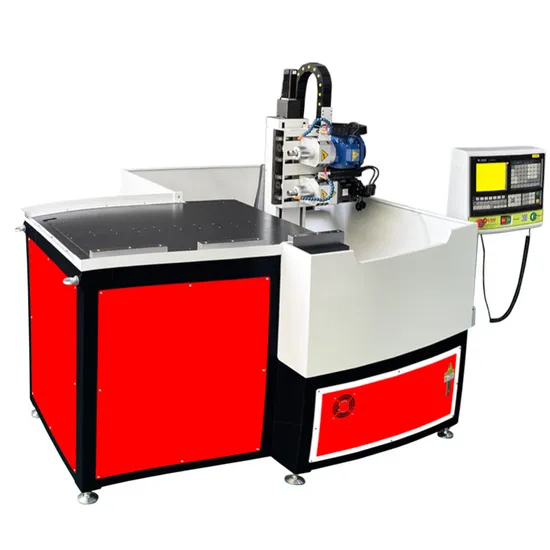

CNC Hot Melt Drilling and Tapping Machine
Basic Info.
Model NO.
12
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Weight
500kg
Power (Kw)
0.55~3.0kw
Size of Working Table
1500mm*280mm
Data Transfer
USB
Transport Package
Wooden Box
Specification
3500*1500*1700mm
Trademark
soar
Origin
China
Product Description
Well-known CNC system,equipped with 32-bit high-performance CPU and color display,Chinese operationinterface is simple and fast, zero foundation 30 minutesto get started.
| Item/Model | PLED-1530G |
| External Dimension | L2600MM*W1300MM*H1500MM |
| Working Stroke | x1500mm y300mm z100mm |
| Safe Passing Height | 120 MM |
| Size of working table | 1500MM*280MM |
| Maximum load | 500KG |
| Drilling diameter range | 0.5-10MM(Non-standard can be customised) |
| Drilling spindle speed | 0-6000RPM(Non-standard can be customised) |
| Drilling spindle power | 750w(Non-standard can be customised) |
| Tapping diameter range | M10MAX (Non-standard can be customised) |
| Tapping spindle speed | 0-3000RPM (Adjustable) |
| Tapping spindle power | 2000WW (Non-Customisable) |
| Spindle dimension | ER20 |
| System resolution | 0.005 (MM) |
| Control interface | Chinese |
| Data transfer | USB |
| Work instructions | G Code |
| Rapid traverse speed | 20000 MM |
| Feed speeds | 0-7000 MM |
| Transmission | Four-axis imported ball screw, five-axis servo motor |
| Round trip accuracy | 0.02 MM |
| Machine weight | About 1300KG |
| Voltage | AC220V |
